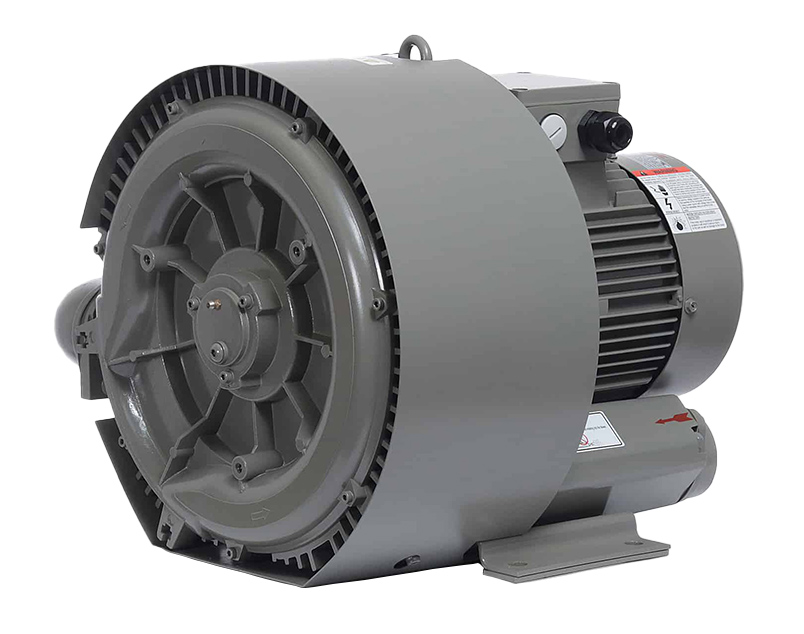

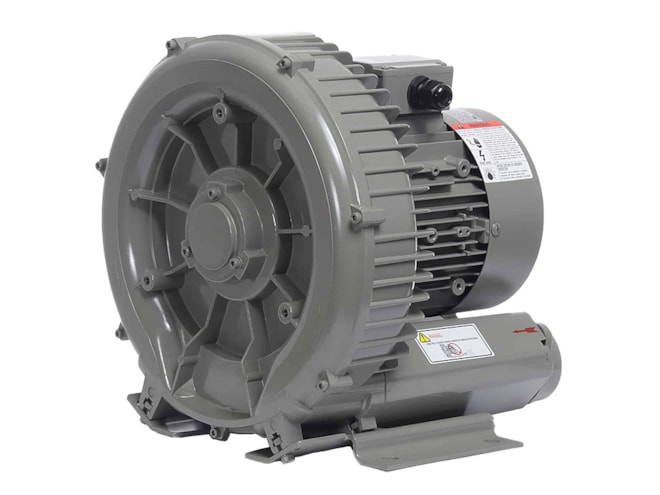

All-Star RBH4 Series Regenerative Blower
Regenerative blower series with a capacity range of 155 to 165 SCFM and a non-pulsating air design.
Overview
Features
- IP 54 protection rating
- Class H insulation 1.15 service factor
- Performance tested ANSI/AMCA210-85
- 40°C ambient
- 2" NPT inlet and outlet
- 155 to 165 SCFM capacity rate
- Non-pulsating design
- Straddled mounted impeller design
Description
The All-Star RBH4 Regenerative Blower Series is a series designed with a 2" NPT inlet and outlet and capable of delivering both pressure and vacuum. The oil-free, non-pulsating design allows for a clean and odor-free air supply, making it ideal for sensitive applications such as the medical and food industries. The straddle mounted impeller designs helps maintain a smooth operation, while the clean filtered air supply prevents contamination and debris.
The RBH4 can come either single stage or two stage, as well as options for a single phase or three phase motor. Additionally, there are even options for a motorless regenerative blower. The power range goes up to 6.1 HP, and the capacity rate is 155 to 165 SCFM, depending on configuration.
Documents
Spec Sheets
- All-Star RBH4 Series Regenerative Blower Datasheet (for RBH4) (197 KB)
- All-Star RBH4 Series Regenerative Blower Datasheet (for RBH43) (209 KB)
Manuals
- All-Star RBH4 Series Regenerative Blower Manual (for RBH4) (426 KB)
- All-Star RBH4 Series Regenerative Blower Manual (for RBH43) (426 KB)
