Champion XCCYA Series Cycling Refrigerated Dryer
10 to 800 CFM cycling dryer, pre and post filers standard, 200 PSIG max operating pressure.
Images may not represent all possible configurations of this product.
Highlights...
Overview
Features
- 10 to 800 SCFM
- NEMA 1 Standard
- NEMA 4 configurations available (200 to 250 CFM only)
- Filtration:
- 300 to 800 CFM models include integrated pre- and post-filtration
- 10 to 250 CFM models include ship-loose filters
- Maximum Inlet Air Temperature: 120°F
- Maximum Operating Pressure: 200 PSIG
- Reliable Solenoid Drain as standard
- Optional no-loss drain + monitoring upgrade
- Performance Testing: ISO Guidelines, CAGI ADF-100
- ETL-certified, UL 60335-1, UL 60335-2-40, CSA 22.2 #60335-1, CSA 22.2 #60335-2-40

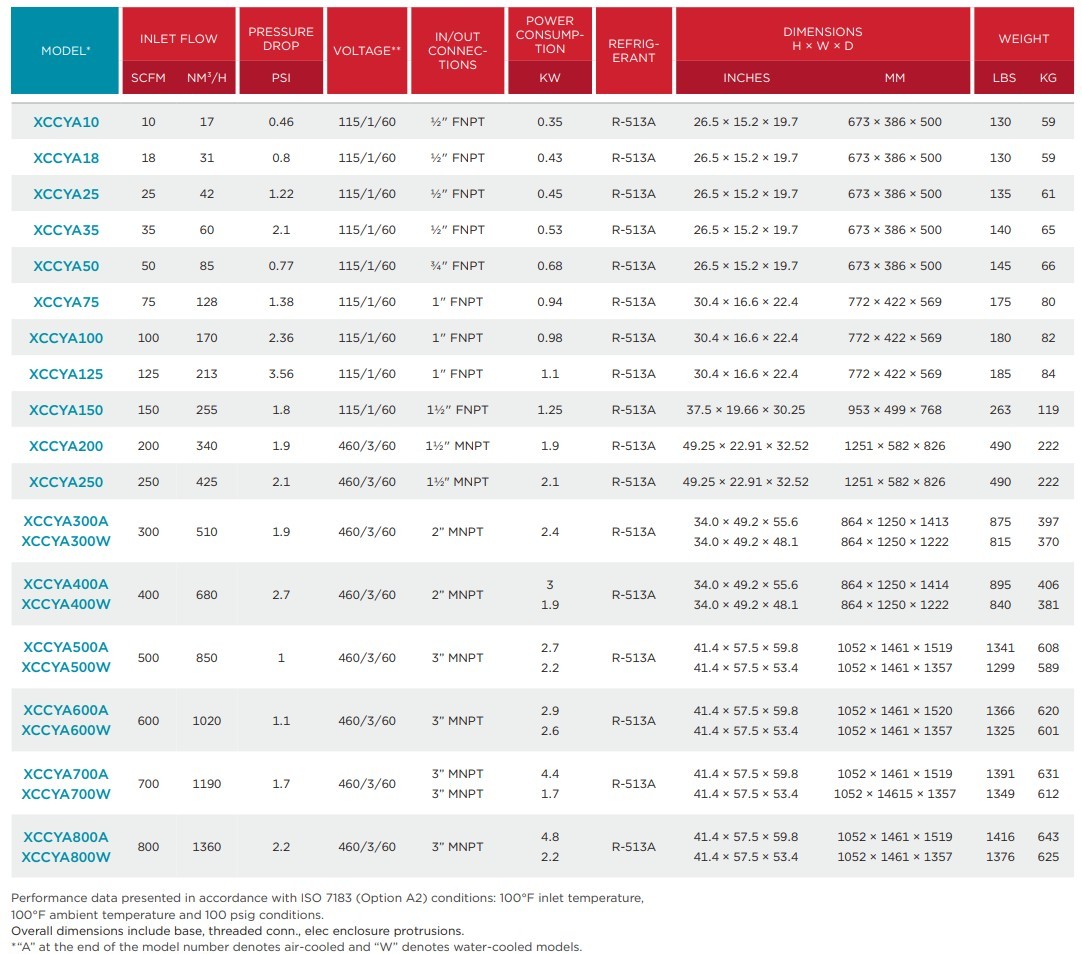

Tech Specs
Due to the complexity of the data presented in some of the images below, describing them accurately in text is challenging. If you require further assistance, please contact one of our engineers for more detailed information.
Description
The Champion XCCYA Series Thermal Mass Cycling Refrigerated Dryer incorporates innovative features that make it a reliable, and energy efficient dryer. The XCCYA Series provides significant savings because it does not waste energy costs through continuous operation of its refrigeration system, as do traditional non-cycling dryers. Each component has been designed to provide durability plus maximum energy efficiency.
The XCCYA Series utilizes R513A refrigerant, achieving an 85% reduction in Global Warming Potential (GWP) for increased sustainability. The net effect is a GWP of less than 700.
