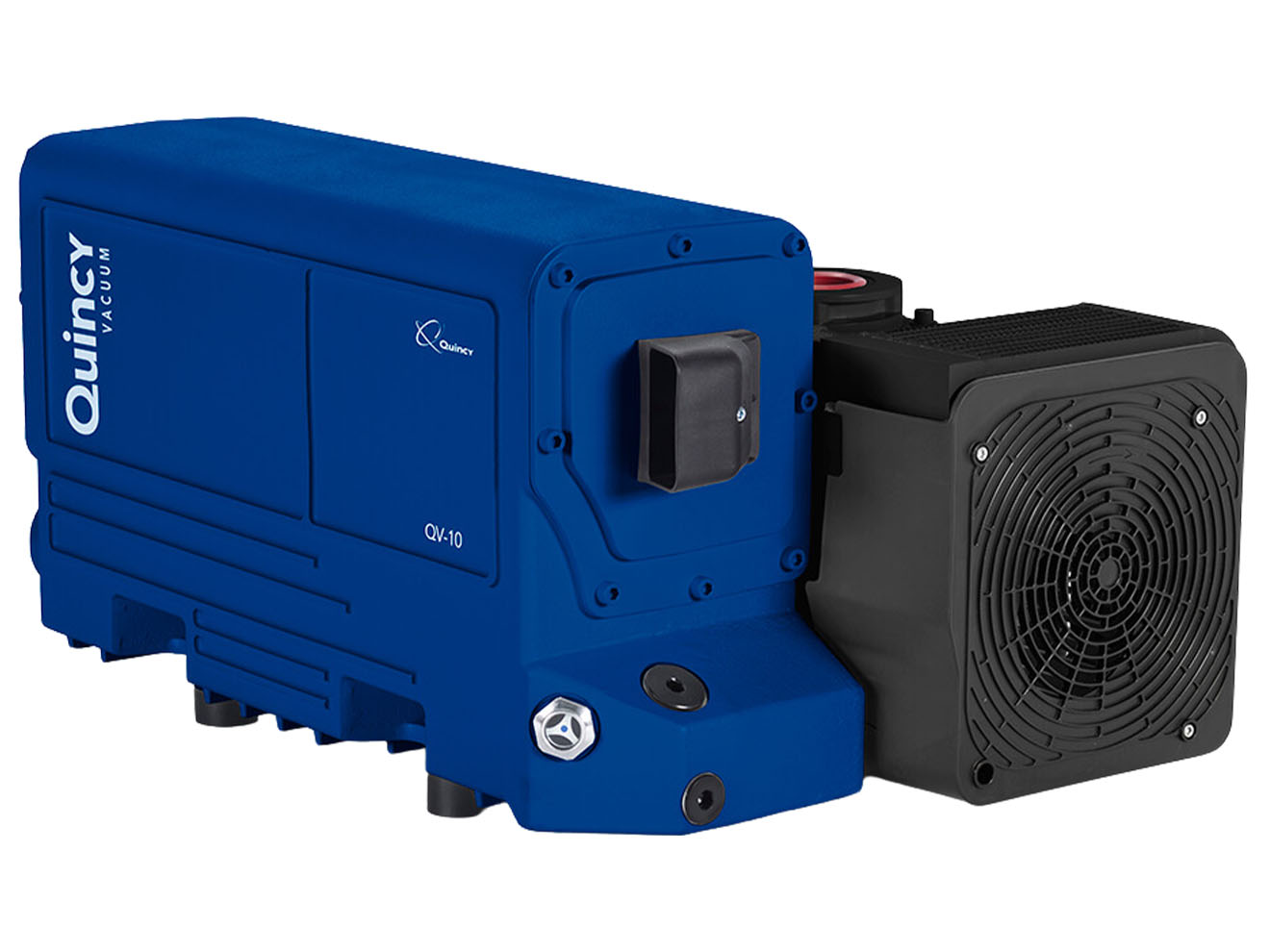

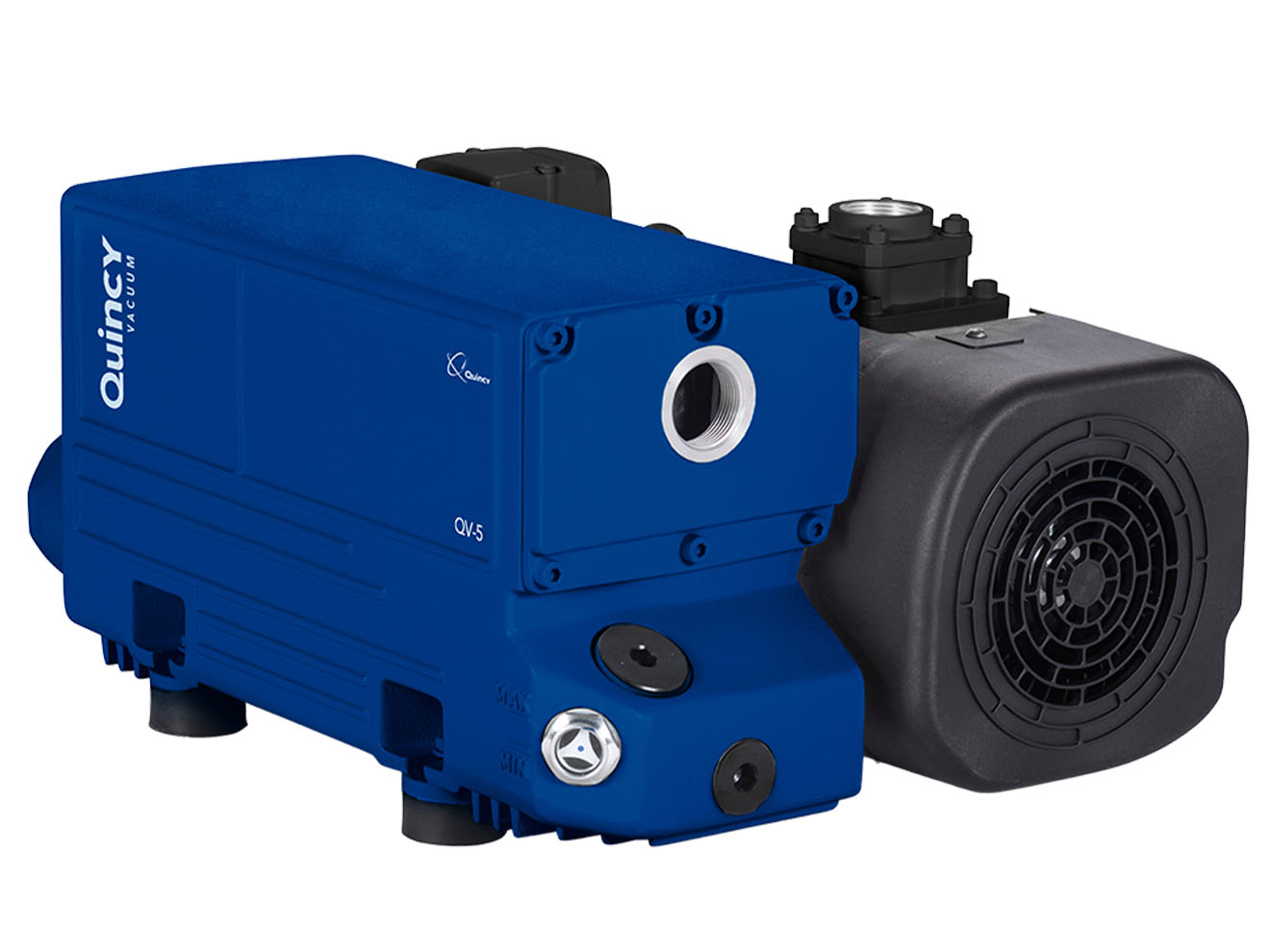

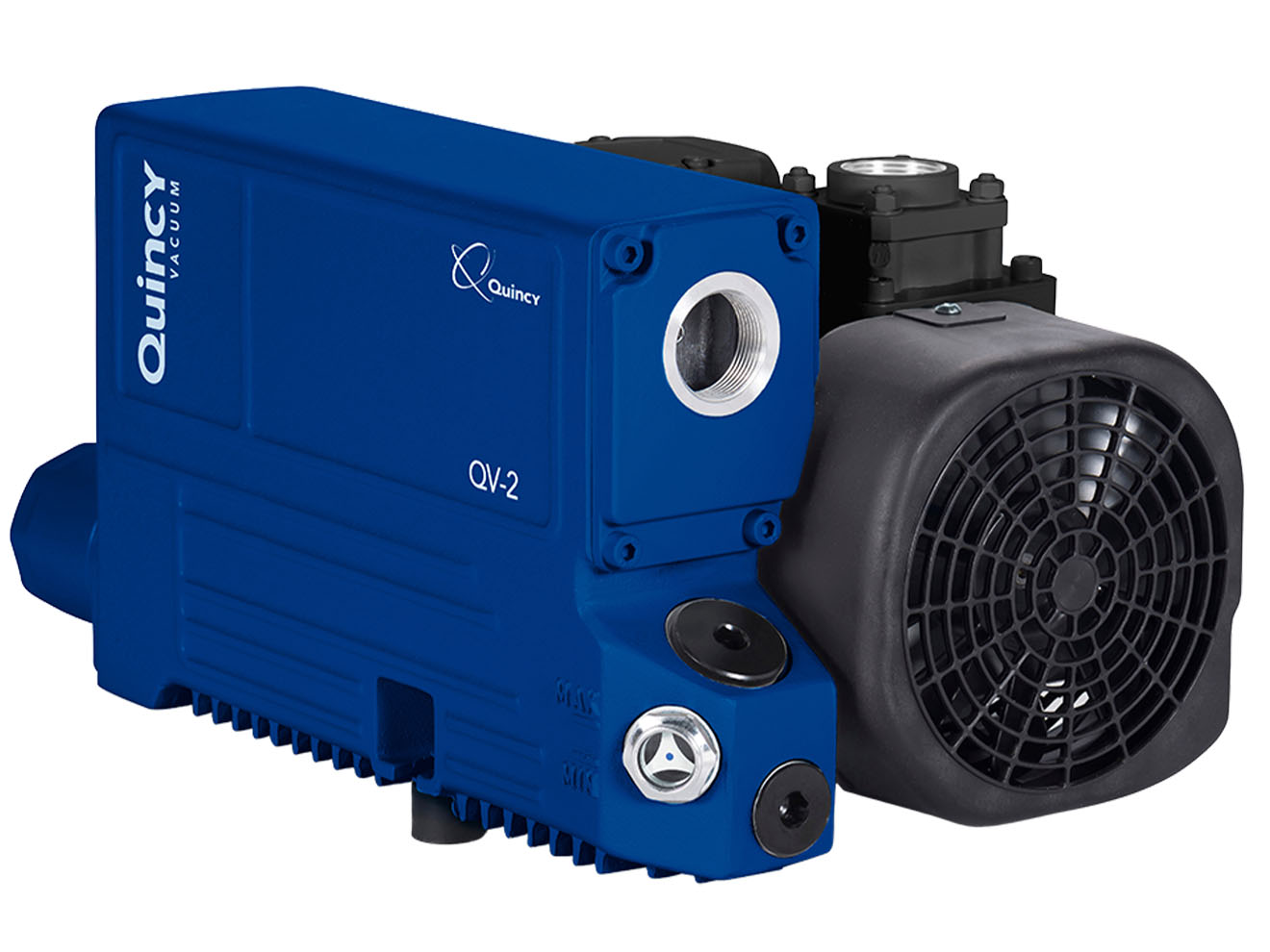

Quincy QV Series Rotary Vane Vacuum Pump

29.9“HgV ultimate vacuum, 1.2 to 8.8 HP, 17.1 to 200 CFM, 1 year warranty.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at 1-866-778-6572. We’re open Mon - Fri / 8:00 AM - 5:00 PM EST.
Request pricing below.
${{ calcCost | formatCurrency }} ${{ (calcCost * calcQuantity) | formatCurrency }} per {{ calcQuantity }} (${{ (calcCost * boxQuantity) | formatCurrency }} per {{ boxQuantity }}) ${{ calcCost | formatCurrency }}
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Available Payment Methods
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
View Company Reviews
Highlights...

Features

  • 29.9“HgV ultimate vacuum
  • 1.2 to 8.8 HP
  • 17.1 to 200 CFM
  • 1800 RPM nominal pump speed
  • Cast-iron, precision-machined rotor with non-metallic vanes
  • Air cooled
  • Heavy-duty flange-mounted motor

The Quincy QV Series Rotary Vane Vacuum Pump features six oil flooded pumps ranging from 1.2 to 8.8 HP. The QV pump is self-contained, including inlet non-return valve, pumping chamber, oil mist separation, and an oil cooling/recirculating system. Optimized for flowrate performance, oil separation and temperature stability, the QV Series can operate continuously at any vacuum level.

Applications:

  • Low Flowrate, point-of-use applications
  • Air (or littler water vapor) process gases
  • Facilities looking for simple DIY maintenance
  • Food processing
  • Food Packaging/Preservation
  • Degassing/Drying
  • Vacuum Load Locks/Fixtures
  • Pick and Place
