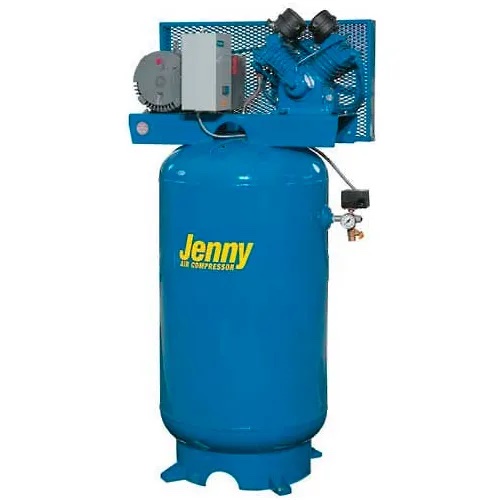

Jenny Two-Stage Climate Control Piston Air Compressor
Cast iron compressor pump mounted to ASME air tank, available in 2 to 25 HP (simplex) and 3 to 50 HP (duplex) configurations.
Highlights...
- By Jenny
- Made in the USA
- Factory Warranty and Support Available
- Excluded From Free Shipping
- Local Service Available on All Brands
Overview
Features
- Configurations:
- Simplex: 2 to 25 HP, 11 to 107 CFM at 100 PSI
- Duplex: 3 to 50 HP, 16.8 to 214 CFM at 100 PSI
- Splash lubricated
- Belt driven with a large flywheel
- Directional air shroud
- Enclosed heavy-duty belt guard
- 60, 80, 120, and 240 gallon ASME air receiver tanks
- Large canister intake filter with replaceable filter elements
- Manual tank drain
- Tank gauge included
- Pressure relief safety valve
- Auto Start/Stop control with pressure unloader set at 75 to 100 PSI
- Alternator and magnetic starter standard on duplex models
- Filled with Jenny Synthetic Blue Compressor Pump Oil
Description
The Jenny Two-Stage Climate Control Piston Air Compressor is a heavy-duty cast iron compressor pump mounted to an ASME air receiver tank. It is available in 2 to 25 HP (simplex) and 3 to 50 HP (duplex) configurations with capacities up to 214 CFM at 100 PSI. The splash-lubricated pump is belt-driven with a large flywheel for extra cooling and easier start-up. Each unit is filled with Jenny Ultimate Blue Synthetic Compressor Pump Oil for peak performance.
