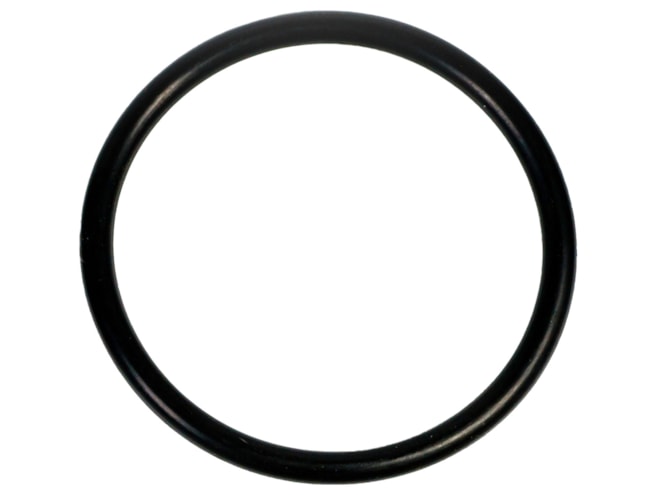

Applied System Technologies 70 Durometer Buna-N Nitrile O-Ring

Replacement 70 durometer o-ring available in 3 different diameters.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at 1-866-778-6572. We’re open Mon - Fri / 8:00 AM - 5:00 PM EST.
Request pricing below.
${{ calcCost | formatCurrency }} ${{ (calcCost * calcQuantity) | formatCurrency }} per {{ calcQuantity }} (${{ (calcCost * boxQuantity) | formatCurrency }} per {{ boxQuantity }}) ${{ calcCost | formatCurrency }}
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Available Payment Methods
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Minimum Order Quantity of 500 Items.
View Company Reviews
Highlights...

Features

  • Black sulfur-cured Nitrile (Buna-N) compound
  • 70 durometer
  • -40°F to 250°F operating temperature range
  • ASTM D2000-99 Grade M2BG714 B14 EA14 EF11 EF21 EO14 EO34 Z1=TR10= -31.9C
  • Designed to meet or exceed the properties of the Buna Nitrile compounds:
    • N674-70, N100-70, 7507, B46-70, 4200-70, H14327, 4700-70, and 366Y

The Applied System Technologies 70 Durometer Buna-N Nitrile O-Ring is made from a copolymer of Butadiene and Acrylonitrile. This material is highly resistant to petroleum-based oils and hydrocarbon fuels and can withstand temperatures ranging from -40°F to 250°F. These o-rings also have exceptional tensile strength and abrasion resistance properties. They perform well with most dilute acids, silicone oils, and lubricants as well as water applications.

Item Number Size Dimensions Actual Metric
135B70 50mm 1-15/16"ID x 2-1/8"OD x 3/32"CS 1.925" ID x 0.103" CS 48.9mm ID x 2.62mm CS
136B70 50mm 2" ID x 2-3/16" OD x 3/32" CS 1.987" ID x 0.103" CS 50.47mm ID x 2.62mm CS
144B70 63mm 2-1/2" ID x 2-11/16" OD x 3/32" CS 2.487" ID x 0.103" CS 63.17mm ID x 2.62mm CS

It is not recommended to use these o-rings with ketones, aromatic hydrocarbons, and phosphate ester hydraulic fluids.

Applications:

  • General purpose sealing
  • Petroleum oil and fluid
  • Gasoline
  • Hydraulic fluid
  • L.P. gas
  • Cold Water
  • Silicone grease and oil
  • Di-ester base lubricant (MIL-L-7808)
  • Ethylene glycol base fluid (Hydrolubes)
