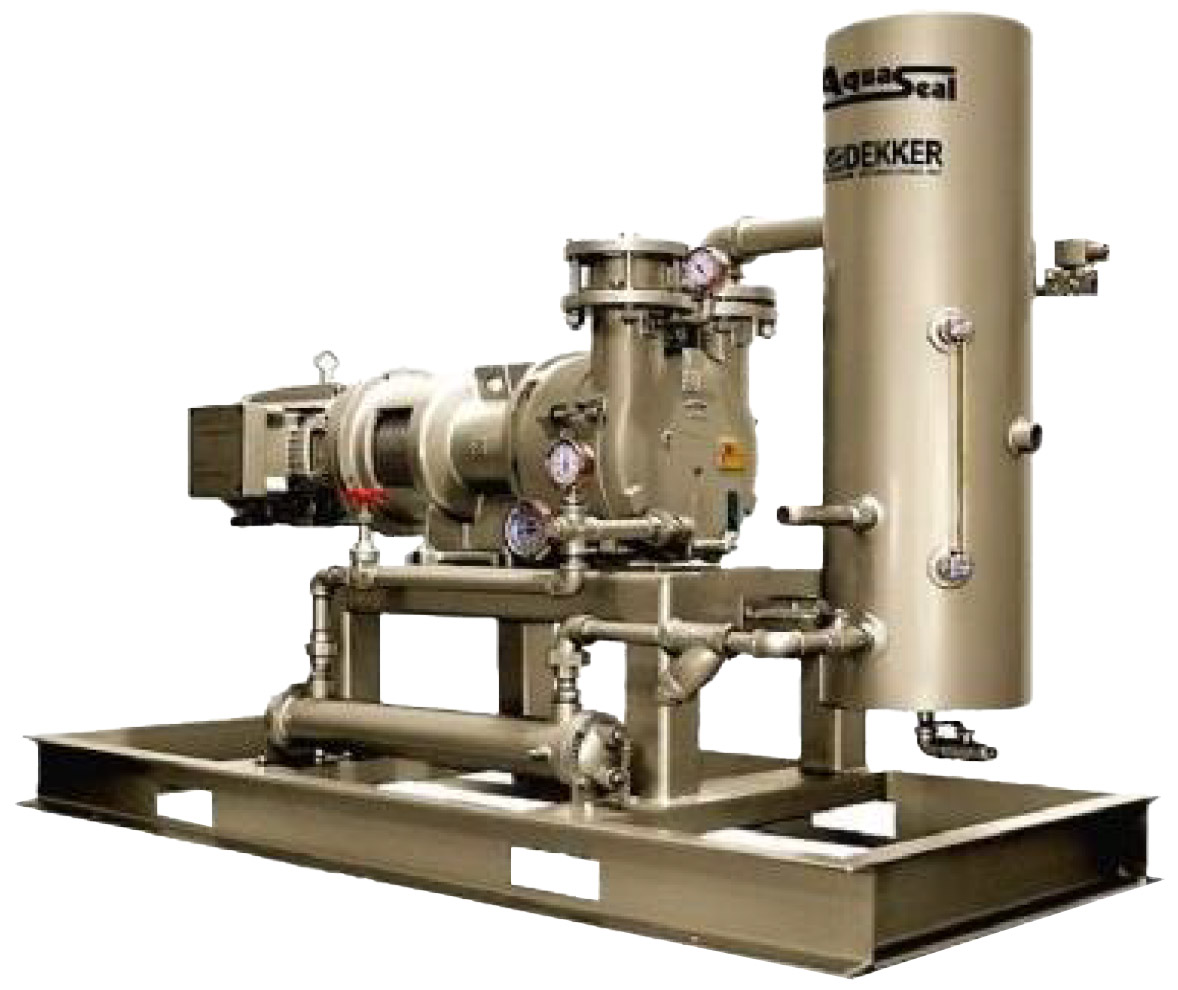

Dekker AquaSeal Stainless Steel Liquid Ring Water-Sealed Vacuum Pump System
29" HgV max vacuum pump with all-wetted 316 stainless steel materials.
Overview
Features
- Titan single-stage motor-mounted or monoblock liquid ring vacuum pump
- 316SS casing, portplate, and impeller
- Teflon mechanical shaft seal
- 230/460V, 3phase, 60Hz motor
- Vacuum gauge (no/partial recovery models)
- Compound, temperature, and vacuum gauge (full recovery models)
- Seal fluid make-up solenoid valve 110VAC
- Inlet check valve
- Pump drain valve (only on 7.5 HP and up)
- Baseplate or skid frame depending on model selected
Description
The Dekker AquaSeal Stainless Steel Liquid Ring Water-Sealed Vacuum Pump System is available in capacities from 20 to 550 ACFM. Backed by Dekker's own Titan vacuum pumps, these systems can create a maximum vacuum 29" HgV. AquaSeal systems can use various seal fluids depending on the application.
System configurations offered:

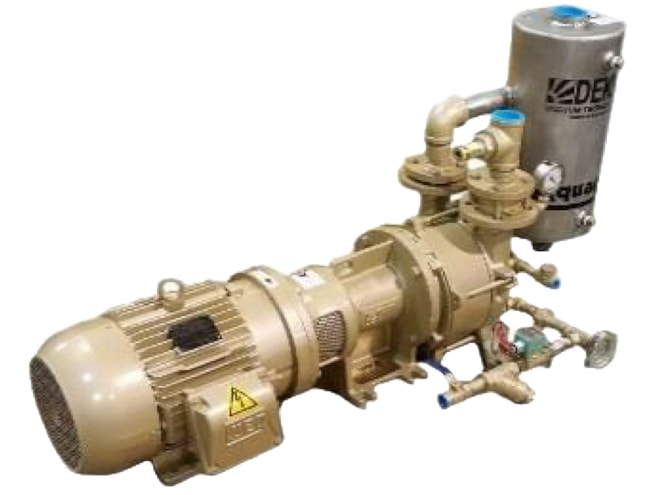

- No Recovery
- Water fed to the vacuum pump is discharged down the drain or used for another purpose.
- Partial Recovery
- About 50% of the seal water is re-circulated while fresh seal water is added for make-up. Consideration must be given to heat build-up.
- Full Recovery
- Close to 100% of the seal water is recovered and reused. Because of heat build-up, a heat exchanger might need to be used for this configuration.
