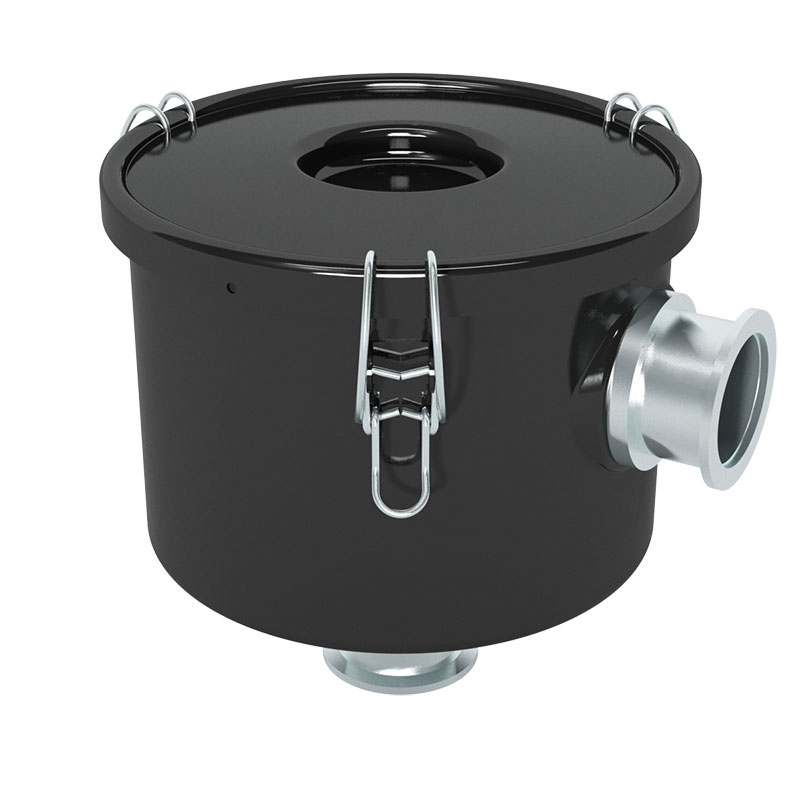

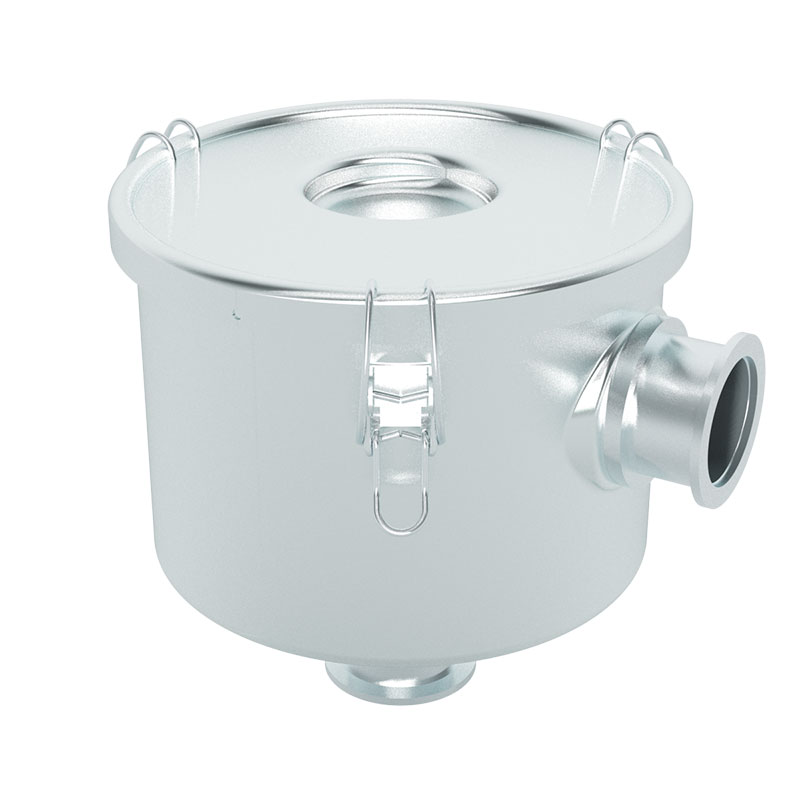

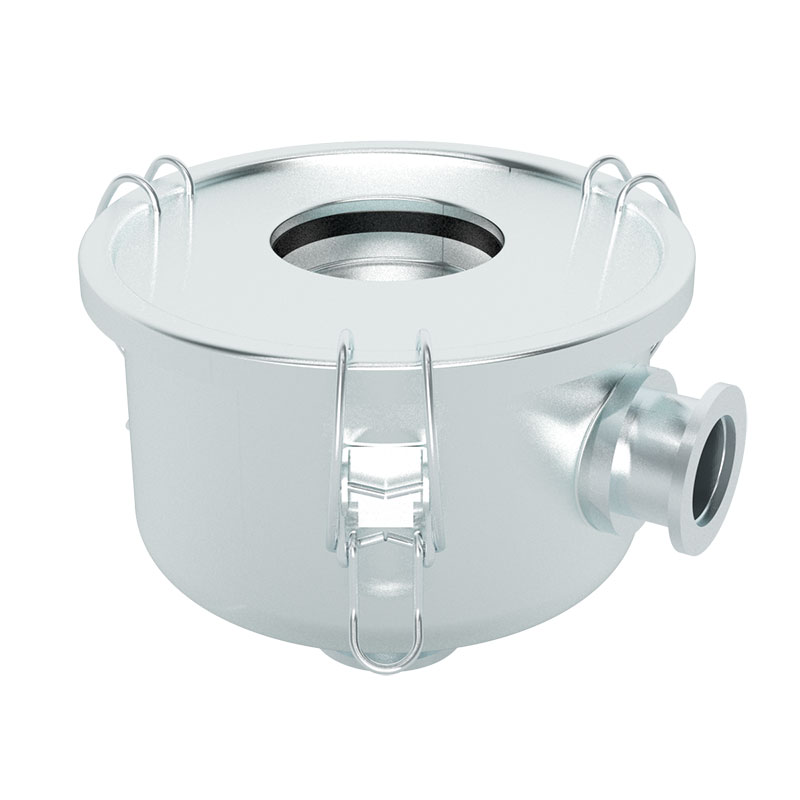

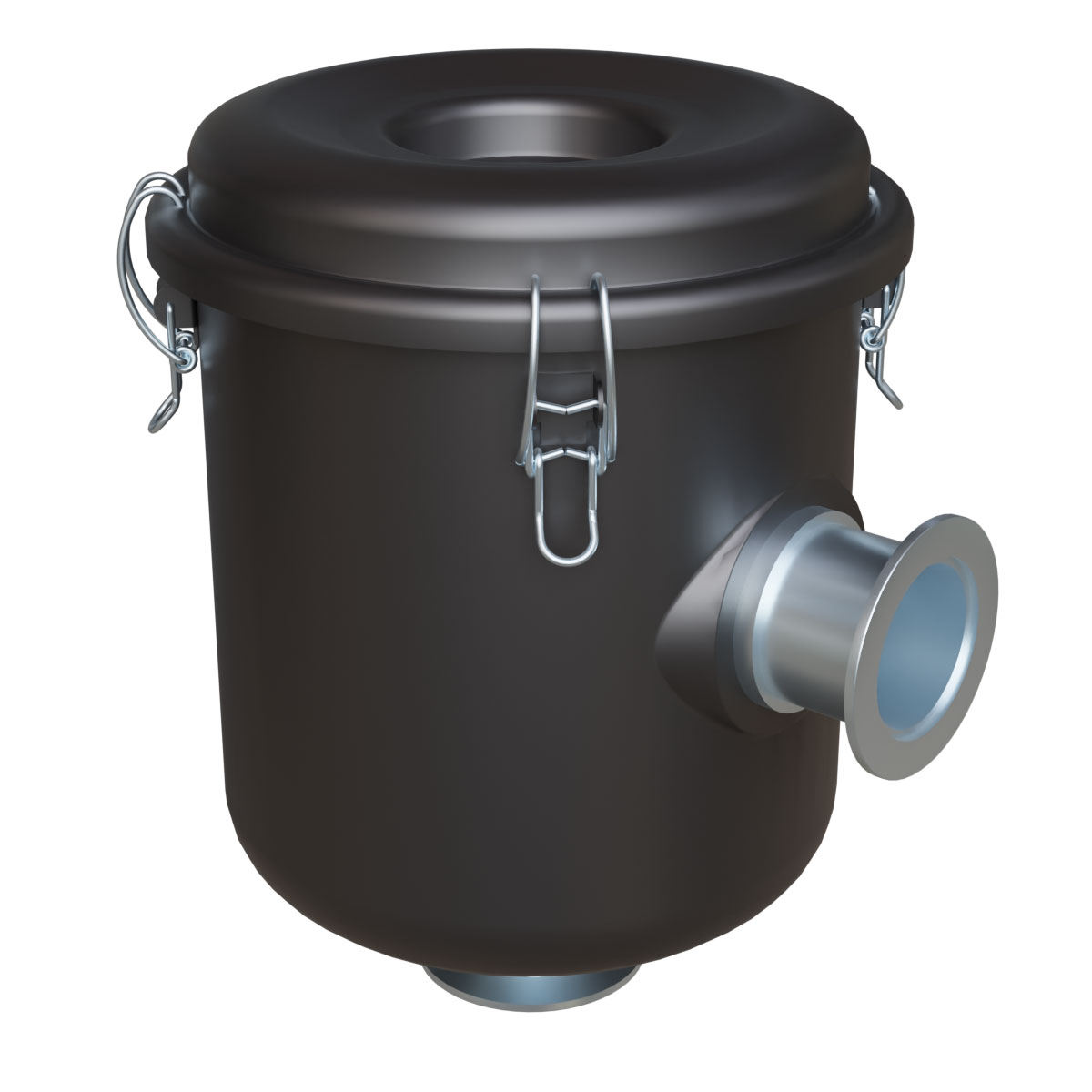

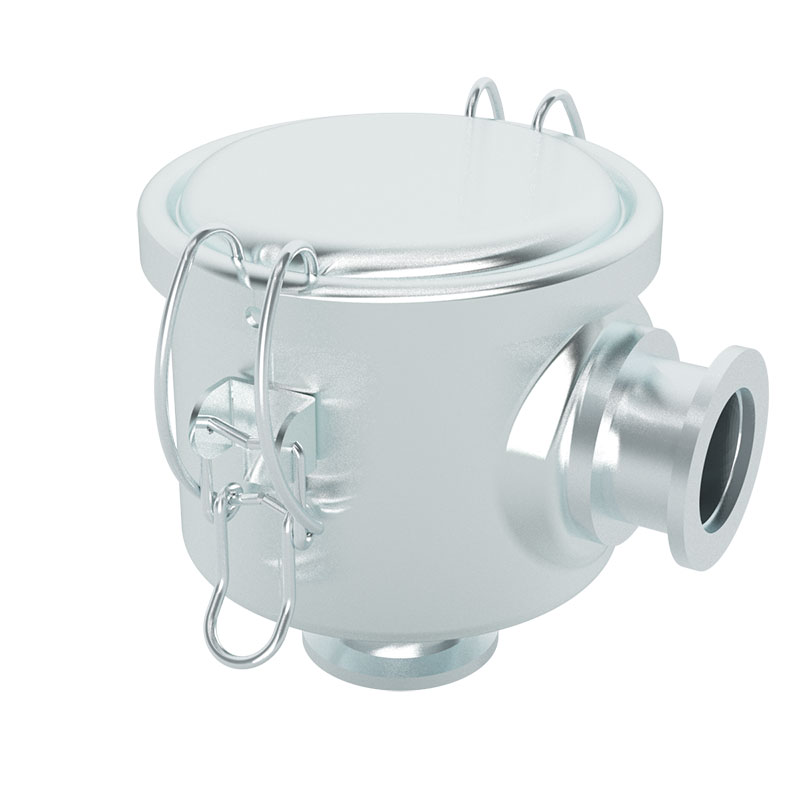

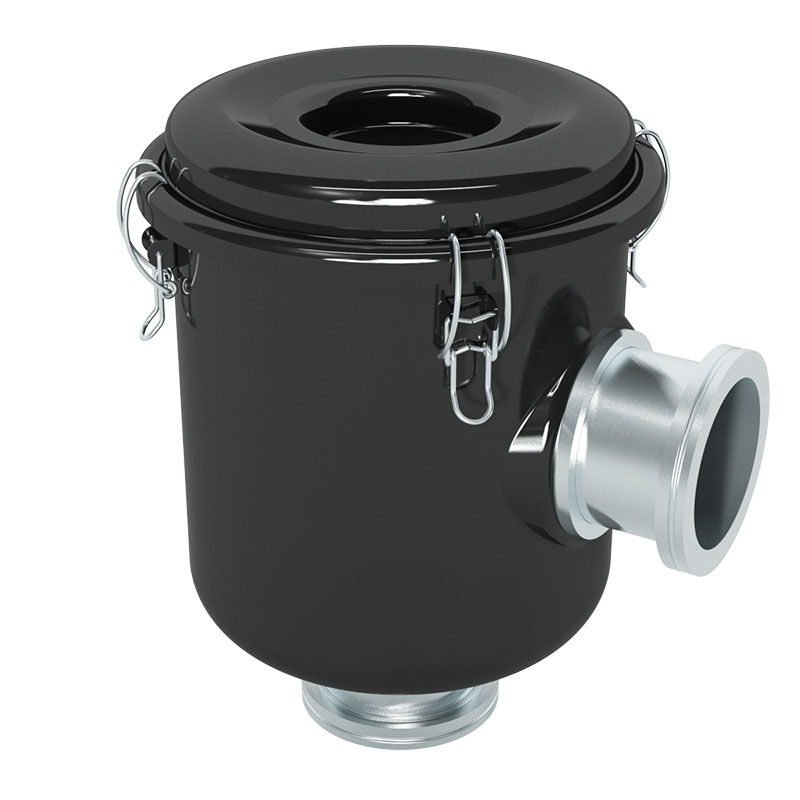

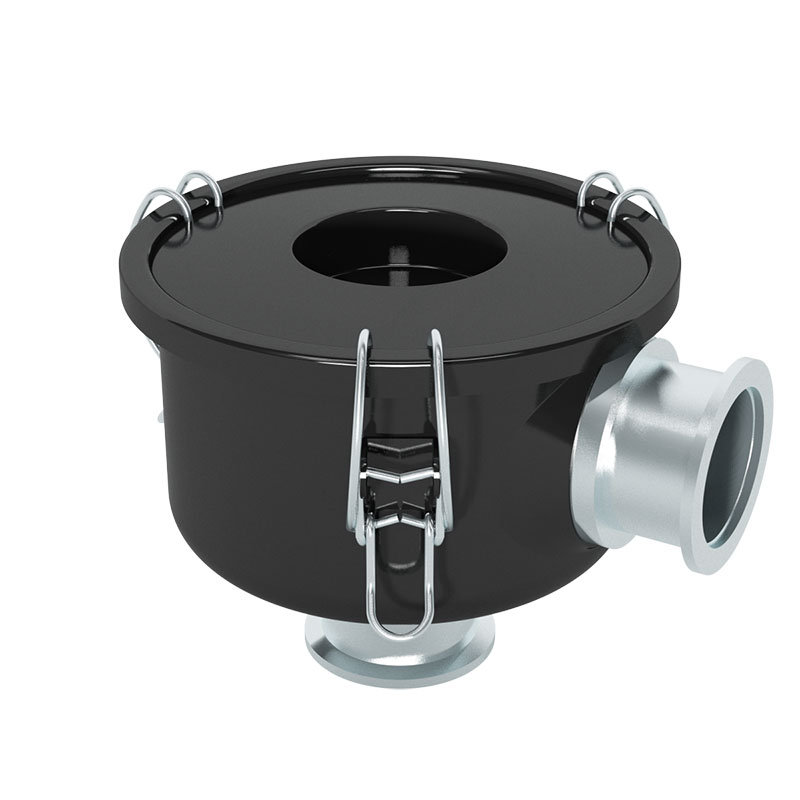

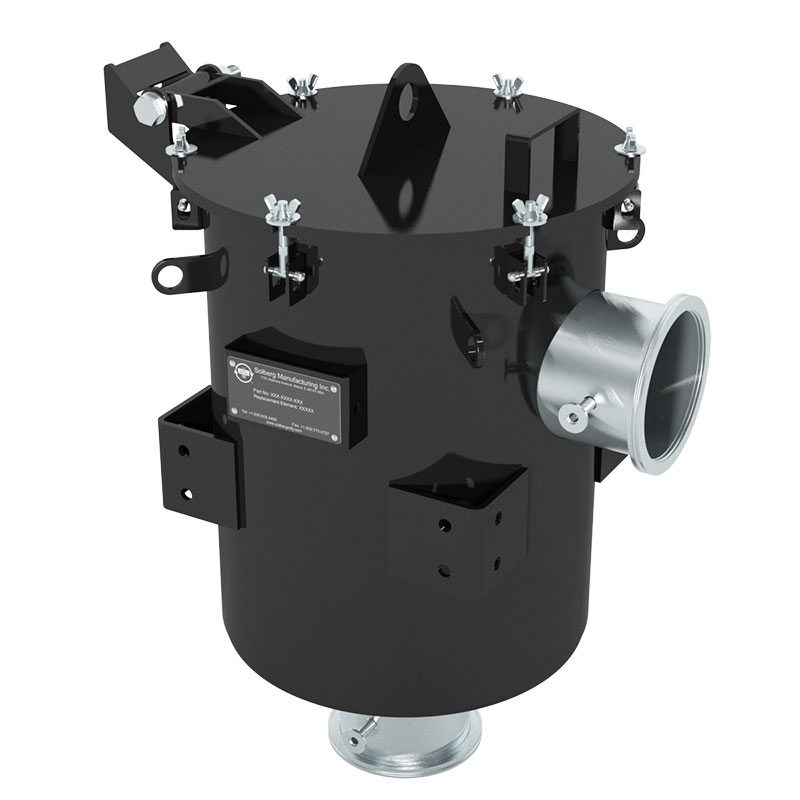

Solberg WL Series, NW16 - NW40, K100 - K320, Medium to High Vacuum

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at 1-866-778-6572. We’re open Mon - Fri / 8:00 AM - 5:00 PM EST.
Request pricing below.
${{ calcCost | formatCurrency }} ${{ (calcCost * calcQuantity) | formatCurrency }} per {{ calcQuantity }} (${{ (calcCost * boxQuantity) | formatCurrency }} per {{ boxQuantity }}) ${{ calcCost | formatCurrency }}
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Available Payment Methods
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
View Company Reviews
Highlights...

Features

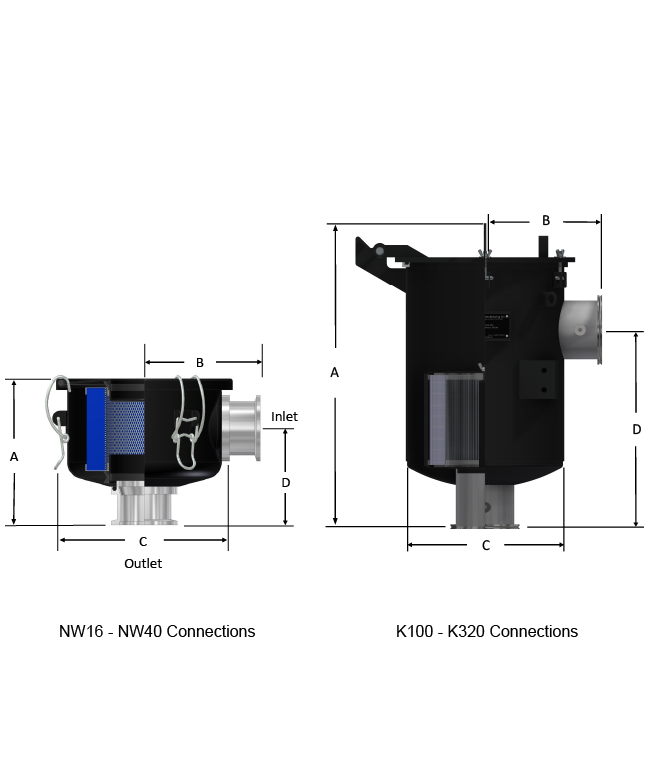

  • NW16 - NW40 Flange Connections:
    • ISO flange connections
      • Stainless steel ISO flange
      • Buna o-ring sealed
  • Seamless drawn housings
  • Corrosive resistant carbon steel construction

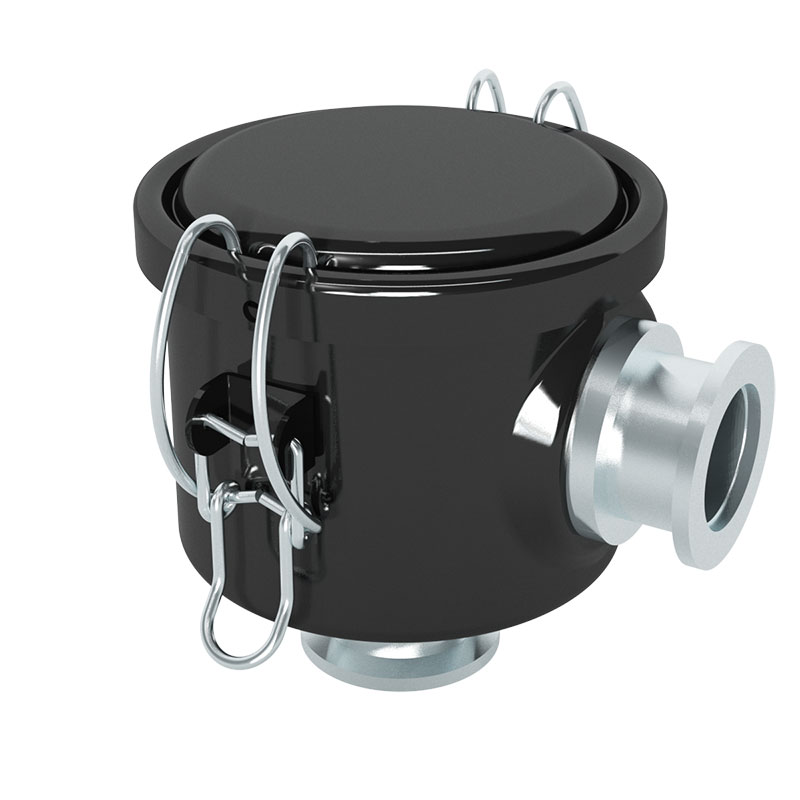

  • Powder coat finish (black models)
  • O-ring housing seal
  • Stainless steel torsion clips

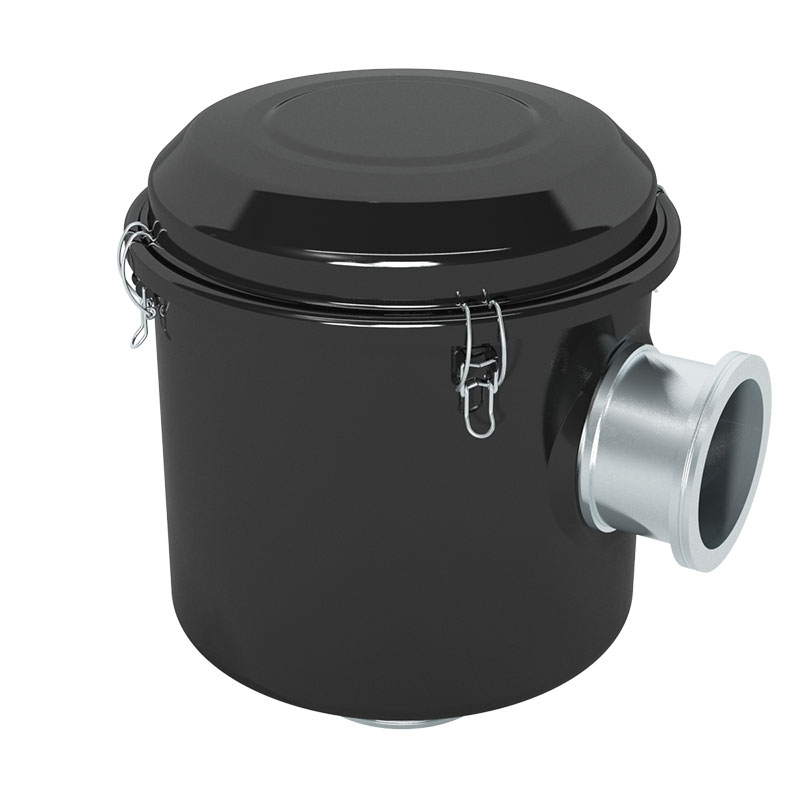

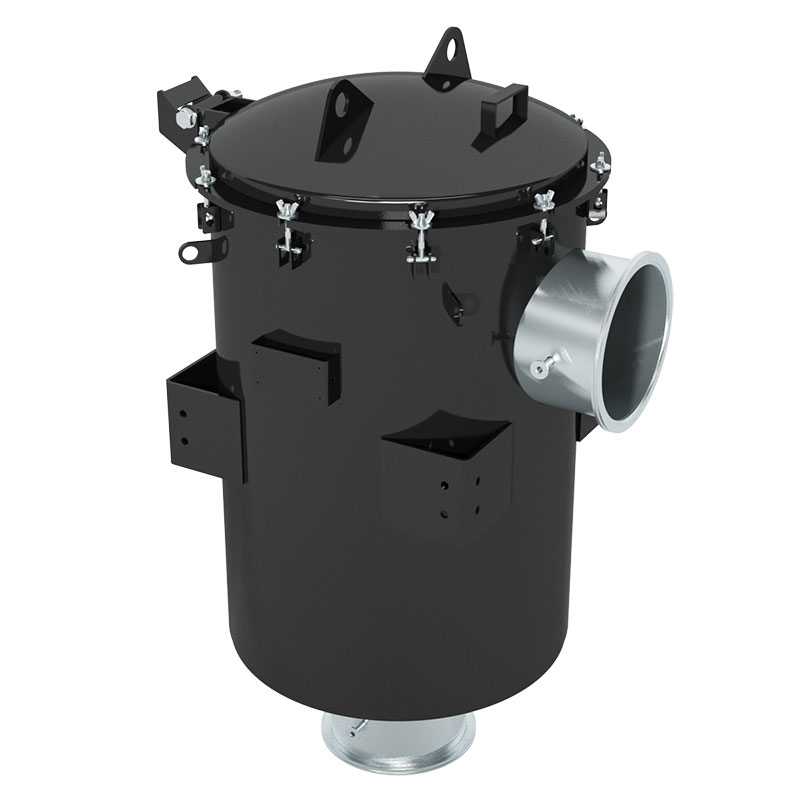

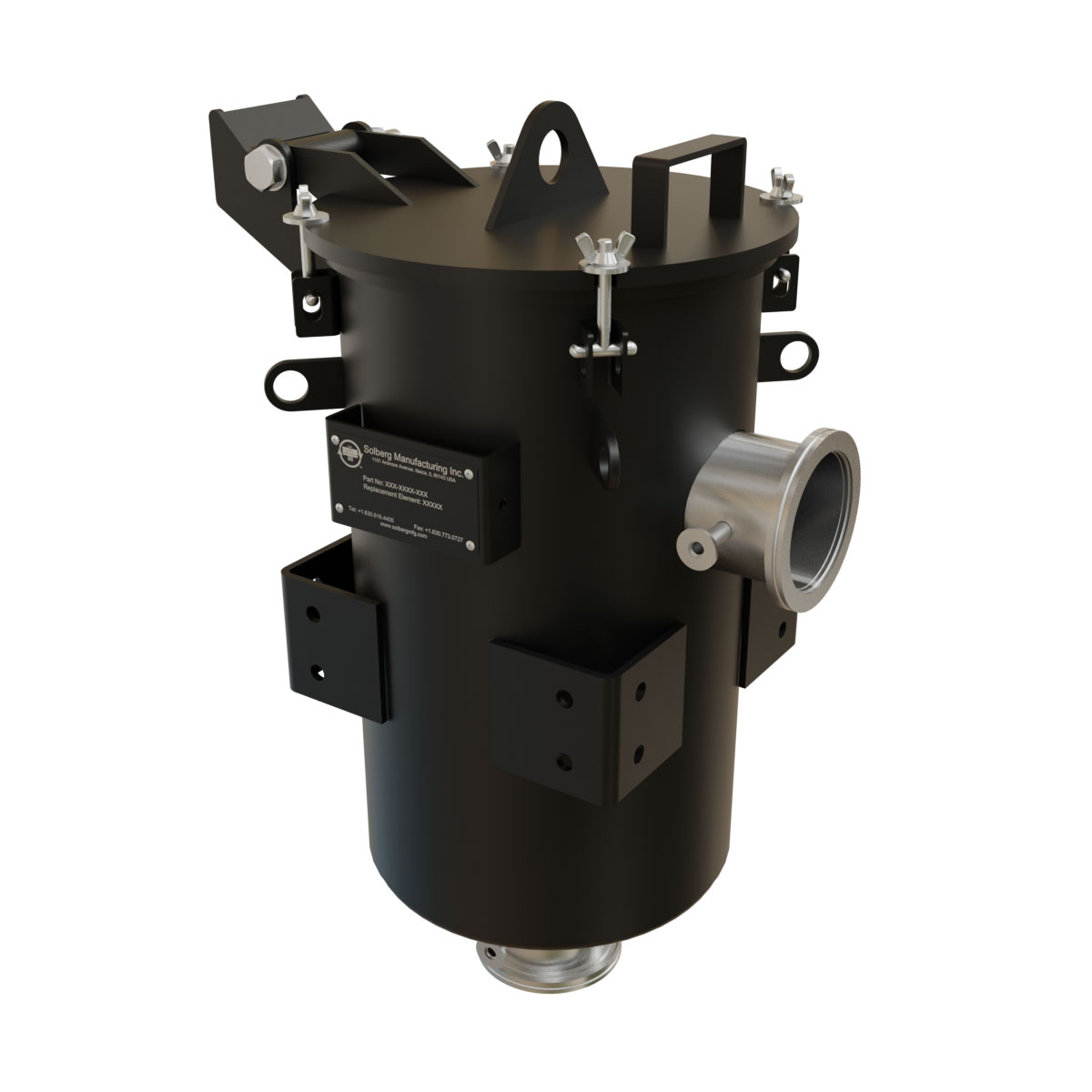

  • K100 - K320 Connections:
    • ISO-K stainless steel flanges standard
    • Machined flange surface to RMS63, uncoated
    • High quality vacuum service components
    • Corrosive resistant black powder coat carbon steel
    • KF10 differential ports for accurate vacuum ΔP readings
    • Machined & polished sealing surfaces on ISO flange faces for reliable vacuum performance on all flange types

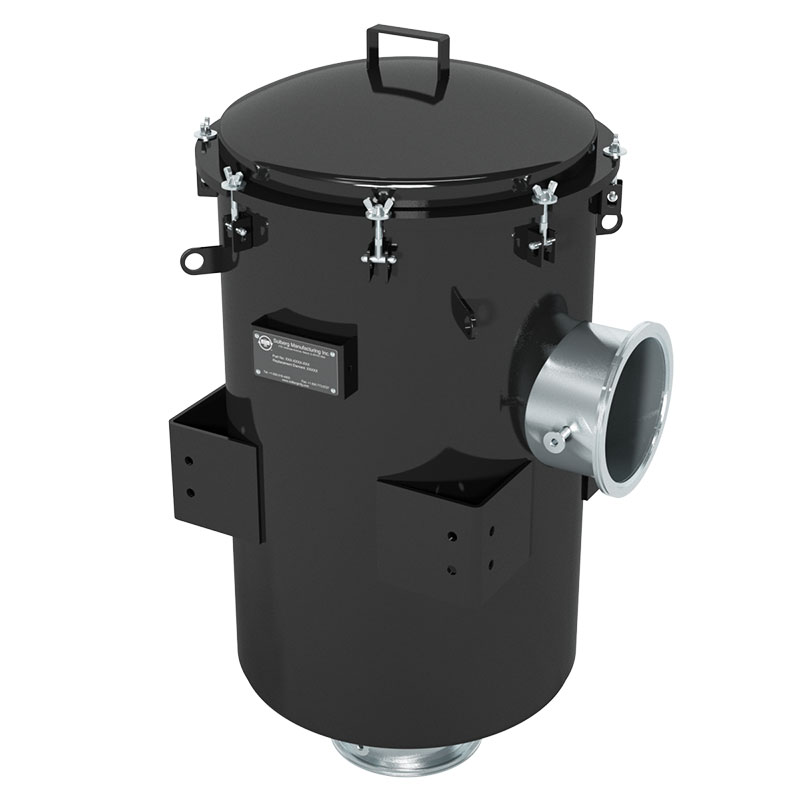

    • K200 housings and larger have domed lid to minimize deflection and increase durability
  • Technical Specifications:
    • Rated vacuum leak rate of 1x10-5 mbar/l/sec or better (verified by helium leak test)
    • Temp (continuous): min -15°F (-26°C) max 220°F (104°C)
    • Filter change out differential: 28 – 37 Torr over initial ΔP

WL Series: Medium to High Vacuum

Solberg’s WL Series medium to high vacuum filters are designed for industrial and Semicon processes that require a verified leak rate and operate in medium to high vacuum conditions. The WL Series has various vacuum-specific connection options, including ISO vacuum fittings and numerous filter media options for superior protection and system longevity. Housings in this series are 100% helium-leak tested to ensure vacuum integrity with verified leak rates of 1x 10-5 mbar l/s or better.

Solberg’s WL Inlet Vacuum Filter Series offers multiple configurations, including:

  • High-Efficiency Filtration
  • Chemical Adsorption
  • High-Temperature Materials of Construction
