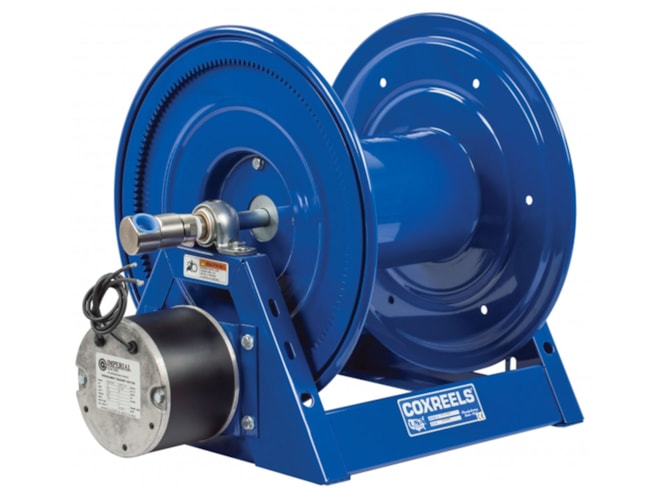

Coxreels HP1125 Series High Pressure Motorized Hose Reel

Supports hose lengths up to 500' at 5000 PSI operating pressures, 9 motor options available.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at 1-866-778-6572. We’re open Mon - Fri / 8:00 AM - 5:00 PM EST.
Request pricing below.
${{ calcCost | formatCurrency }} ${{ (calcCost * calcQuantity) | formatCurrency }} per {{ calcQuantity }} (${{ (calcCost * boxQuantity) | formatCurrency }} per {{ boxQuantity }}) ${{ calcCost | formatCurrency }}
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Available Payment Methods
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
View Company Reviews
Highlights...

Features

  • Up to 5000 PSI working pressure
  • CNC welded 12 gauge steel a-frame
  • Motor options:
    • Aluminum 4-vane air motor
    • Cast iron 6-vane air motor
    • 12 VDC motor, 1/3 HP
    • 115 VAC motor, 1/2 HP
    • 24 VDC motor, 1/2 HP
    • 12 VDC motor, 1/2 HP
    • 24 VDC motor, 1/3 HP
    • 230 VAC motor, 1/2 HP
    • Hydraulic rewind
  • Electroless nickel-plated 90° full-flow NPT swivel
  • Permanently lubricated bearings
  • 2-year limited manufacturer warranty
  • CPC powder coat finish
  • Hose not included

The Coxreels HP1125 Series High Pressure Motorized Hose Reel has a design that is favored by the industry. It comes with a strong one-piece "A" frame base that is all-welded. The low-profile outlet riser and open drum slot design provide a non-crimping, flat smooth hose wrap.
