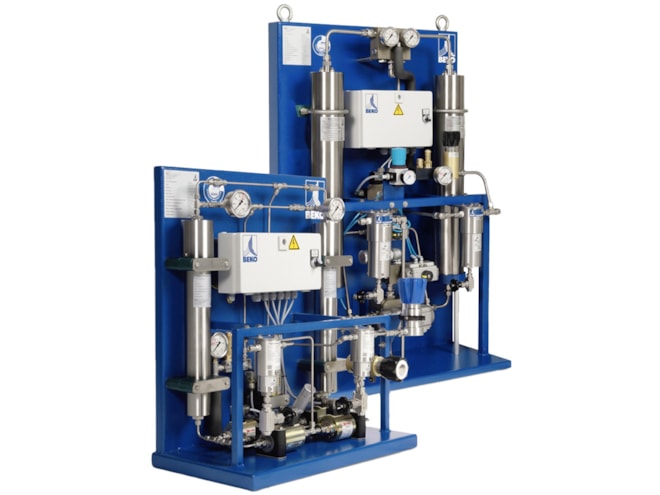

BEKO DRYPOINT AC HP Heatless High Pressure Desiccant Dryer
High pressure heatless dryer with full stainless steel components and PLC controller.
Highlights...
- By BEKO Technologies
- Factory Warranty and Support Available
- Excluded From Free Shipping
- Local Service Available on All Brands
Overview
Features
- 1450 to 5000 PSIG pressure ratings
- 35 to 480 SCFM flow rates
- -40°F standard pressure dew point
- -100°F optional outlet pressure dew point available
- Vessels and all components are stainless steel
- Standard electrical power supply: 85 - 265 VAC; 24 Vdc; 50-60 Hz
- Included pre-filtration grade SX: .01 μm
- FX 1 μm optional pre-filtration grade available
- Included post-filtration grade FX: 1 μm
- Min. / max. air inlet temperature: 41°F / 131°F
- Min. / max. ambient temperature: 41°F / 122°F
Description
The BEKO DRYPOINT AC HP Heatless High Pressure Desiccant Dryer comes with a standard compressor synchronization control system. The intelligent control system automatically saves the current status of the process program and resumes operation from the point of interruption in case of a restart. This helps prevent an overload of adsorption desiccant. This solution offers operational safety and energy-saving coupling with compressor operation. The adsorption vessels are made of profiled stainless steel and feature a spacious opening that comes with a screw lid for easy maintenance. This also enables thorough inspections of the inside of the vessel.
