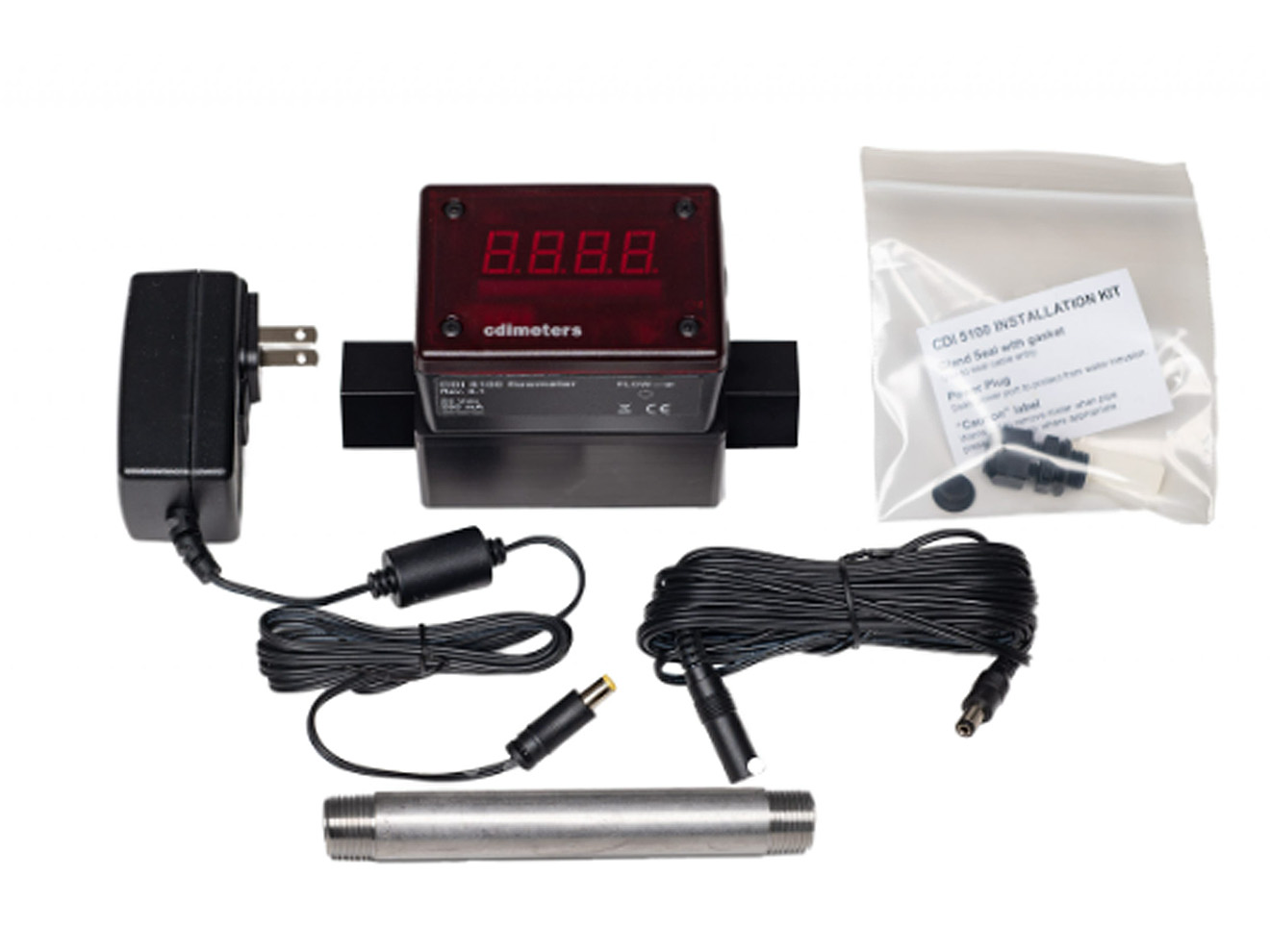

CDI Meters 5100 Series Inline Flow Meter

Weather resistant inline flow meter for use with 20 to 40 SCFM compressed air and nitrogen in point-of-use applications.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at 1-866-778-6572. We’re open Mon - Fri / 8:00 AM - 5:00 PM EST.
Request pricing below.
${{ calcCost | formatCurrency }} ${{ (calcCost * calcQuantity) | formatCurrency }} per {{ calcQuantity }} (${{ (calcCost * boxQuantity) | formatCurrency }} per {{ boxQuantity }}) ${{ calcCost | formatCurrency }}
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Available Payment Methods
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
View Company Reviews
Highlights...

Features

  • 20 or 40 SCFM flow rate
  • 200 PSIG max operating pressure
  • 3/8" or 1/2" nominal connection
  • 100V or 230 VAC
  • 600 Ohms output resistance
  • Optional RS-485 network output
  • Weather-resistant and surge protected

The CDI Meters 5100 Series Inline Flow Meter is designed for use with compressed air and nitrogen in low flow rate point-of-use applications. The CDI 5100 Series concentrates the flow into a small area to optimize the tradeoff between pressure drop and low-flow sensitivity. When used at 100 PSIG, it will create a pressure drop rate no greater than 1 PSI.

The flow is measured by the meter through the use of two probes, with one being kept at a warmer temperature than the other. It then determines and displays the mass flow rate in SCFM or equivalent units on the 4-digit LED display.
