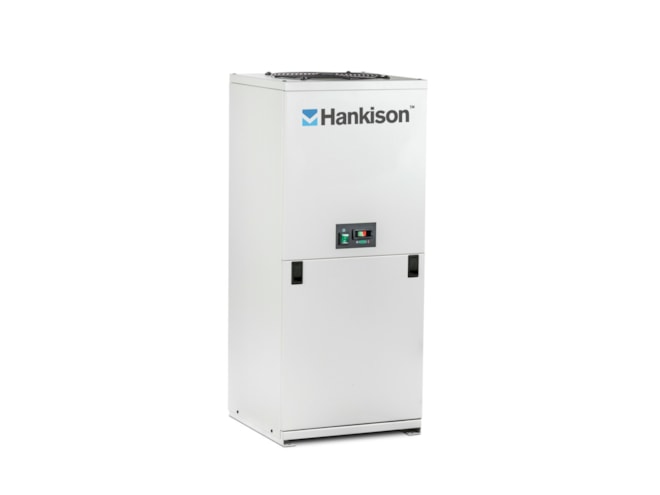

Hankison HITN 75, 75 SCFM, Refrigerated Air Dryer
75 SCFM, 1in NPT, 2 year parts & labor warranty.
- HITN 75
Overview
Features
- 75 SCFM capacity
- 180°F max inlet air temperature
- Hermetic refrigeration system
- Air operated condensate drain
- Two-stage separator/filter
- R-134a or R-407c refrigerant
- ISO 8753 Class 6 moisture removal
Description
The Hankison HITN 75 SCFM non-cycling high inlet temperature refrigerated air dryer is designed to efficiently dry compressed air with inlet temperatures up to 180°F. The stainless steel brazed plate heat exchangers with integral demister separator ensure optimal heat transfer for the life of the dryer and the two-stage separator/filter removes condensed oil and water over a wide range of flows. The Hankison HITN series features an adjustable timed electric drain, widely spaced inlet and outlet connections, lighted on/off switch, dew point temperature indicator, and fault light. The top mount fan allows installation in tight spaces and the bottom base rail has pre-drilled mounting holes for a secure floor mount.
Applications
- Auto body shops
- Auto service centers
- Commercial and industrial facilities utilizing 5 to 30 HP compressors
