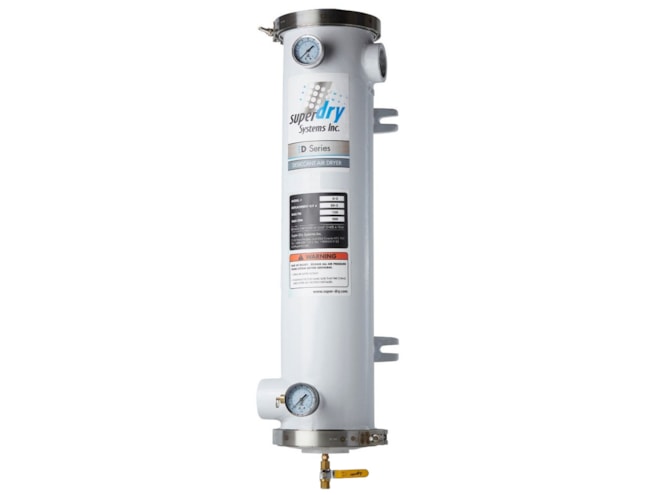

Super-Dry D3, 280-130, 200 SCFM Heatless Desiccant Air Dryer

-40° F*, 200 SCFM with 2" NPT, designed for point-of-use applications.

Features

  • INLET / OUTLET PORTS: 2'' NPT
  • AIRFLOW @ 100 PSIG: 200 SCFM
  • MAXIMUM INLET PRESSURE: 150 PSI
  • MAXIMUM INLET TEMPERATURE: 100°F (38°C)
  • CRN: CERTIFICATIONS & PRESSURE RATINGS
  • PRE-FILLED WITH DESICCANT CARTRIDGE
  • PRESSURE GAUGES, SAFETY VALVE, AND BALL VALVE INCL.
  • UNIT WEIGHT: 75 LB
  • BOX DIMENSIONS: 34 x 11 x 9"
View Other Configurations

The Super-Dry 280-130, 200 SCFM Desiccant Air Dryer is a single tower unit designed for point-of-use and intermittent flow applications. The wet compressed air enters at the inlet is separated due to the off-set inlet creating centrifugal separation to trap water droplets, then passes around a polypropylene coalescer element, felt pads, and stainless-steel grids to remove solid particulates. The air flows upward through a sewed filtration desiccant bag that acts as a sponge to absorb moisture. The air then flows through the second stage of filtration to eliminate any desiccant dust.
