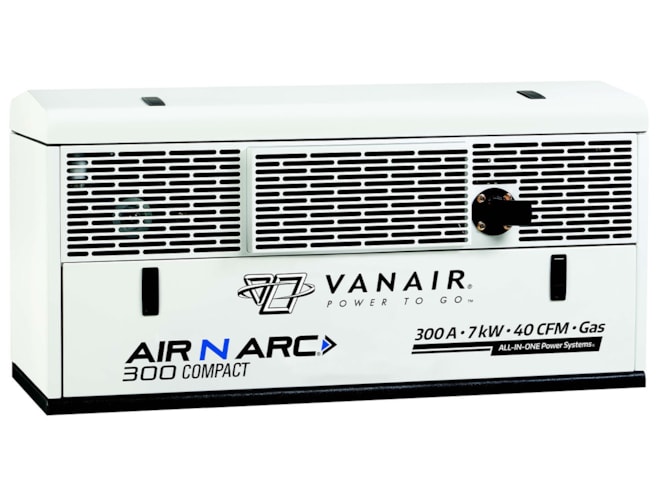

Vanair Air N Arc 300 Compact Gas Rotary Screw Compressor with Generator/Welder
Gas powered 40 CFM rotary screw air compressor with 7 kW generator and 300 AMP welder for under box type body mounting.
Overview
Features
- 7.5 inches shorter and up to 100 lbs lighter than the standard Air N Arc 300 with fuel tank
- Kohler 26.5 HP EFI, air cooled motor
- Electric start
- Glow plugs
- Belt driven
- Compressor:
- Rotary screw
- 40 CFM at 150 PSI
- 175 PSI max pressure
- Generator:
- 7 kW peak, 4.2 kW continuous
- 60 Hz, single phase
- Two 120V and one 240V outlets
- Independent AC generator
- Brushless design
- Welder:
- High Frequency DC Welding
- 270 AMPs at 100% duty cycle
- 40 to 300 AMPs Operating Range
- 15 to 30V range
- Independent DC welder
- Auto speed control
- CV MIG capabilities
Description
The Vanair Air N Arc 300 Compact Gas Rotary Screw Air Compressor with Generator/Welder maintains the full functionality of five power sources and the multi-function capability in one unit. The Air N Arc 300 Compact is specifically designed to be mounted under a box type body. Coming in 7.5" shorter and up to 100 lbs lighter than the standard Air N Arc 300 with fuel tank, this compact unit provides the flexibility and space-saving capability to mount the unit outside the body of the vehicle while still maintaining ground clearance.
