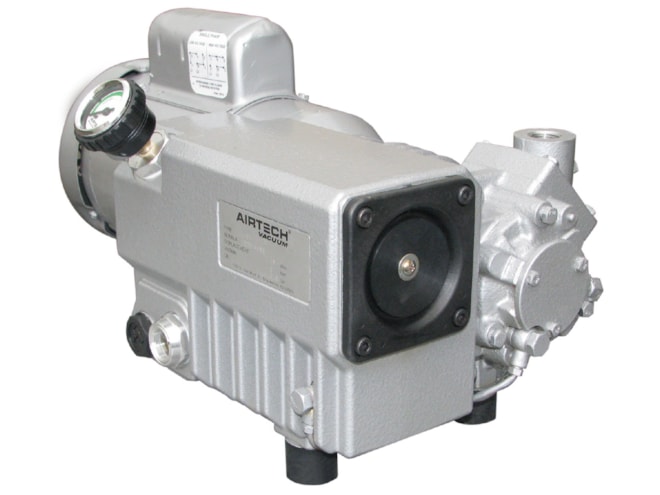

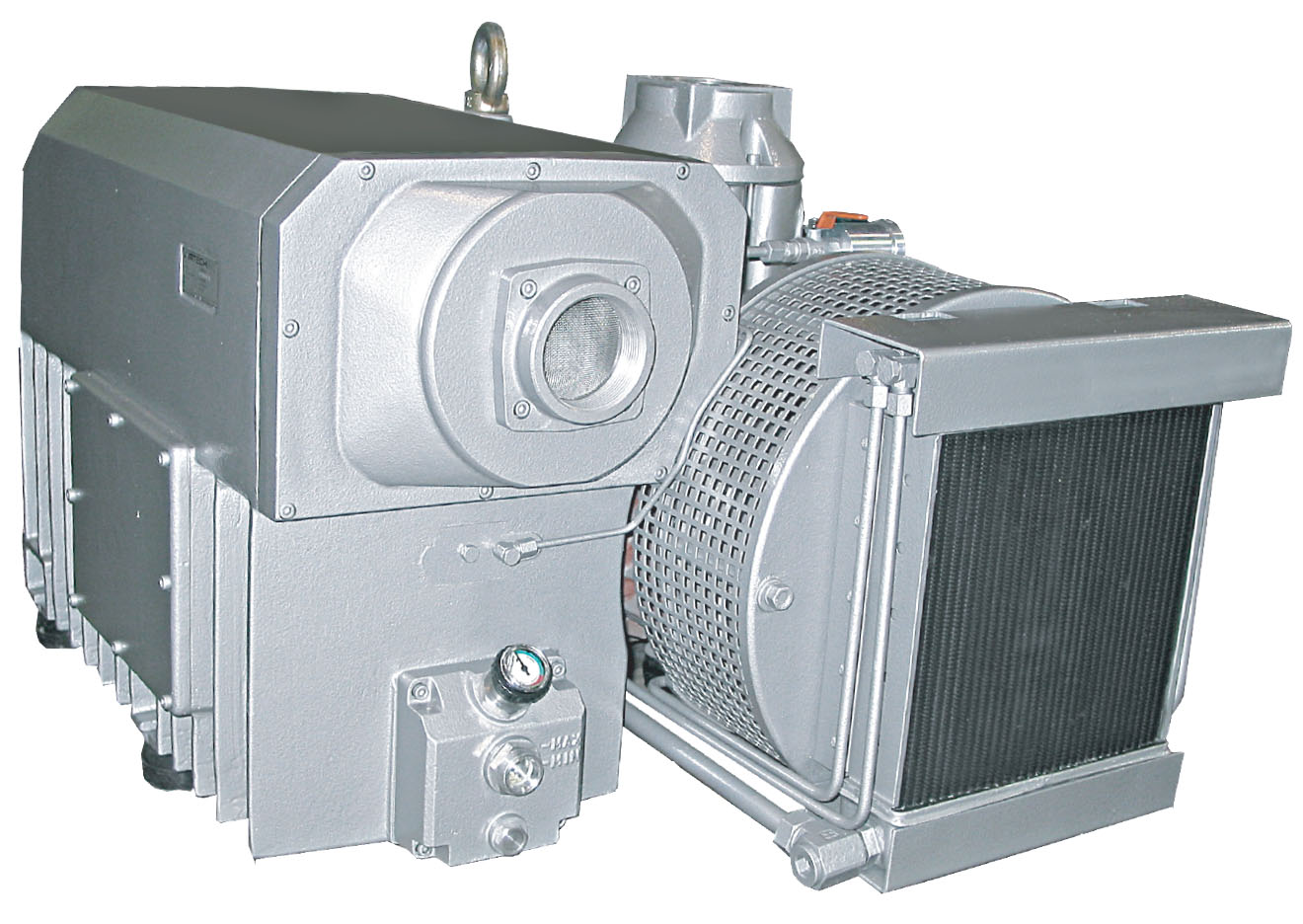

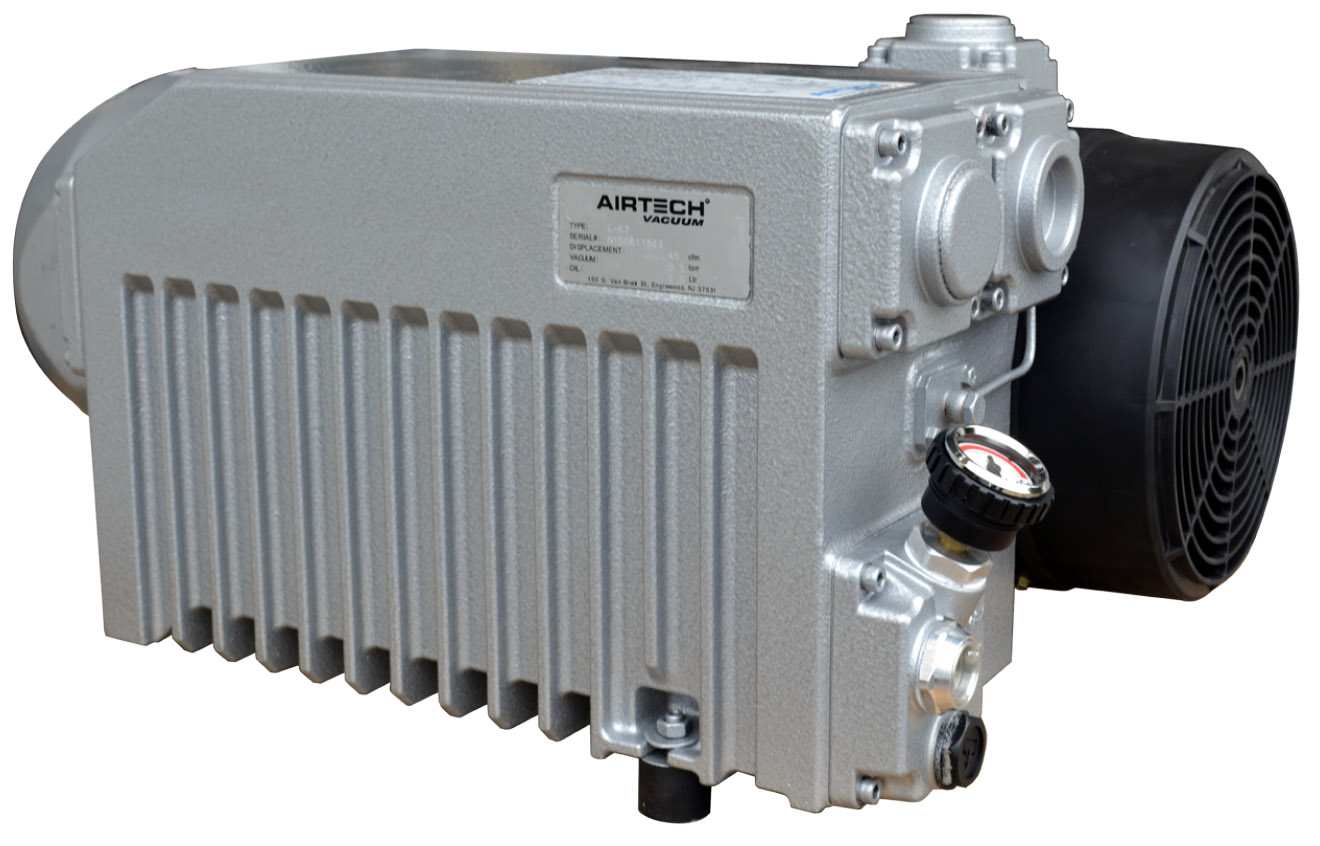

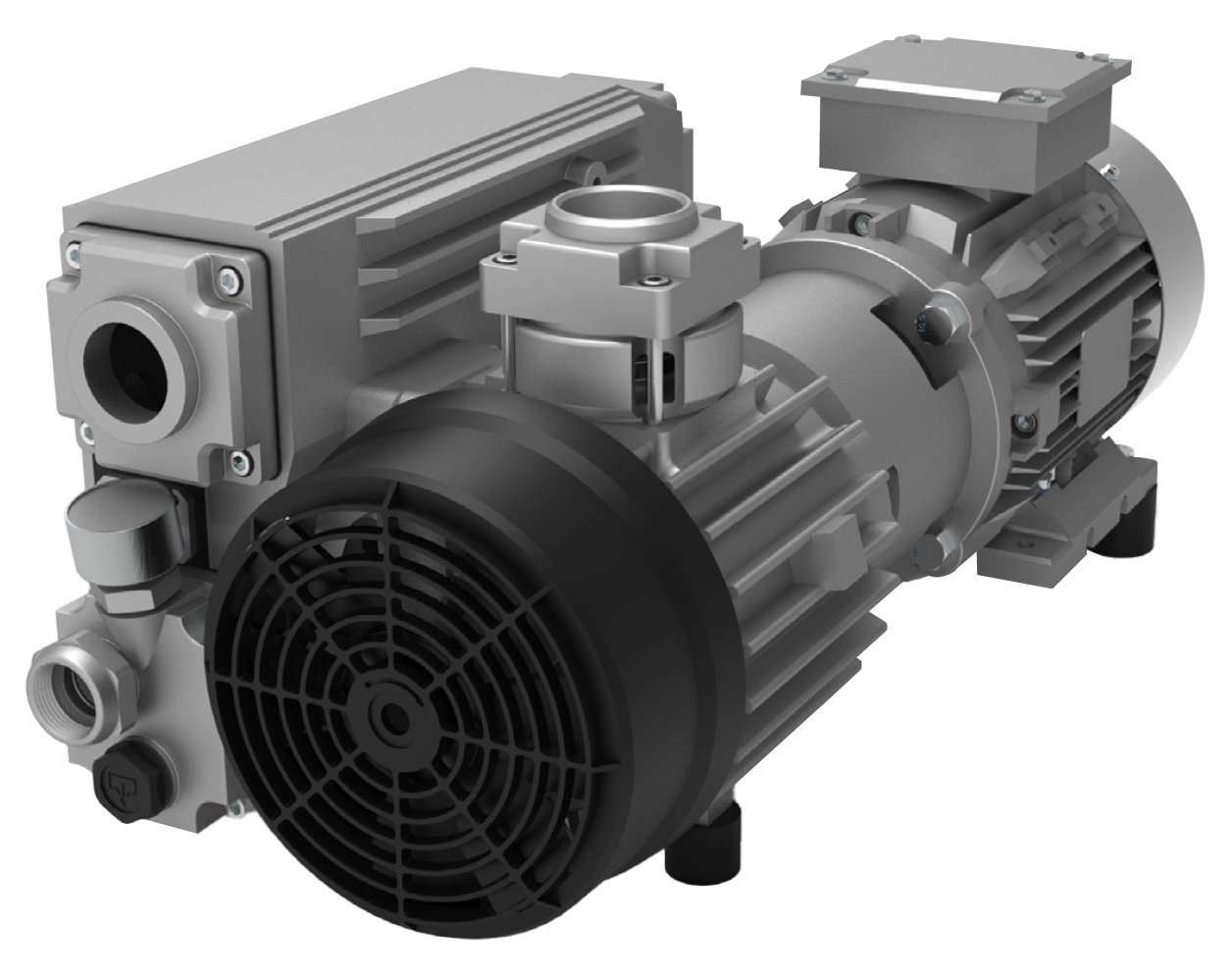

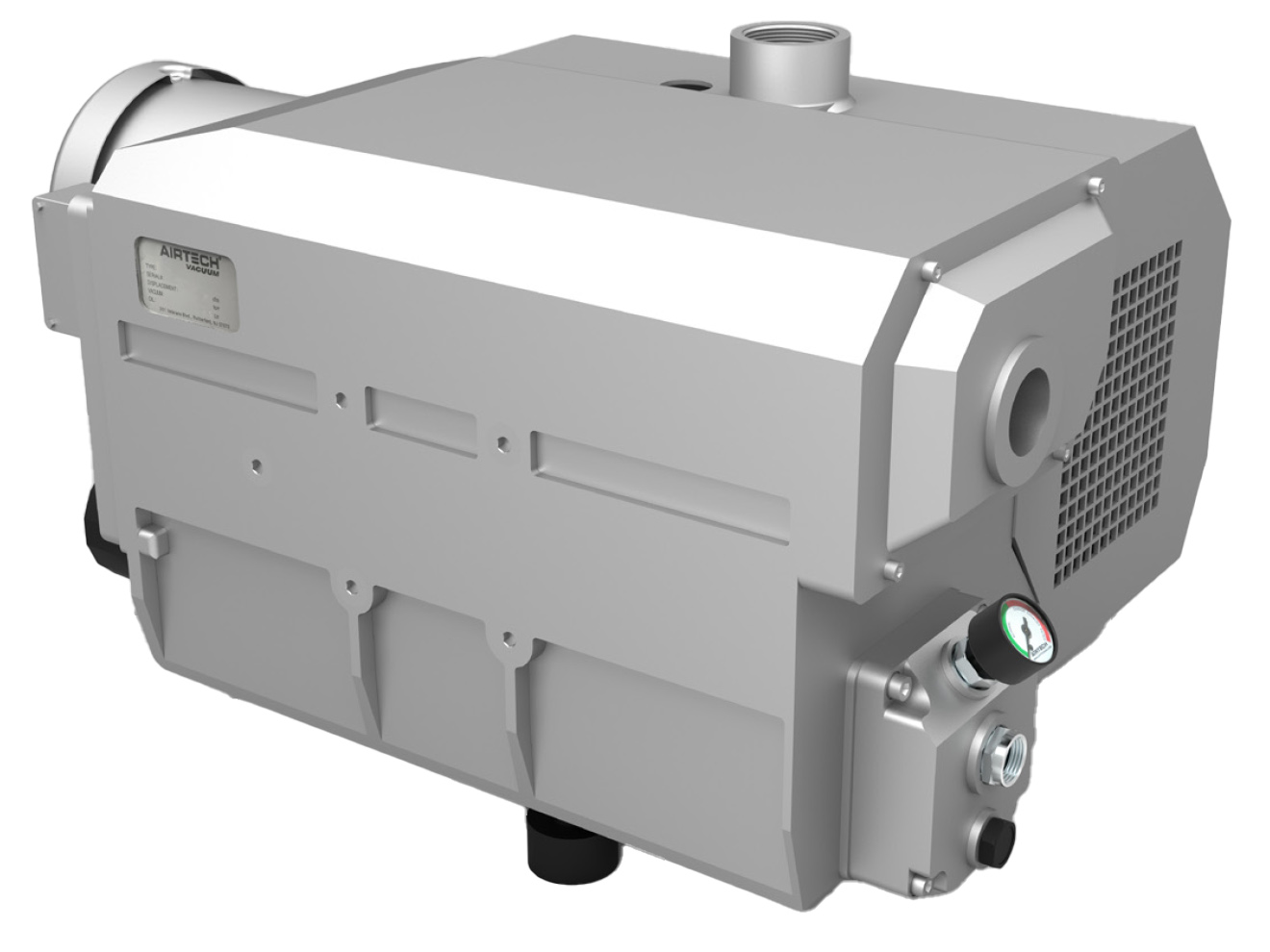

Airtech L Series Rotary Vane Vacuum Pump

0.75 to 25 HP single stage, direct drive pumps with a capacity range of 7 to 460 CFM with an end vacuum of 0.5 Torr.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at 1-866-778-6572. We’re open Mon - Fri / 8:00 AM - 5:00 PM EST.
Request pricing below.
${{ calcCost | formatCurrency }} ${{ (calcCost * calcQuantity) | formatCurrency }} per {{ calcQuantity }} (${{ (calcCost * boxQuantity) | formatCurrency }} per {{ boxQuantity }}) ${{ calcCost | formatCurrency }}
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Available Payment Methods
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
View Company Reviews
Highlights...

Features

  • TEFC high-efficiency motors available
  • Air cooled, oil lubricated
  • Composite material vane
  • Wire mesh inlet screen
  • Integrated exhaust filters
  • Exhaust pressure gauge
  • Oil level sight glass
  • Spin-on oil filters
  • Vibration isolators
  • Anti-suck back valve

The Airtech L Series rotary vane vacuum pump features integral exhaust filters, vibration isolators, and composite vane material which improves the lifespan of the pump. The L Series has an operating capacity range of 7 to 460 CFM while obtaining an end vacuum of 0.5 Torr. The L Series is a single stage and oil-lubricated rotary vane vacuum pump complete with integral oil-recirculating system. The pump is air-cooled, direct driven, and multi-vane including TEFC motor. All models include a gas ballast.
