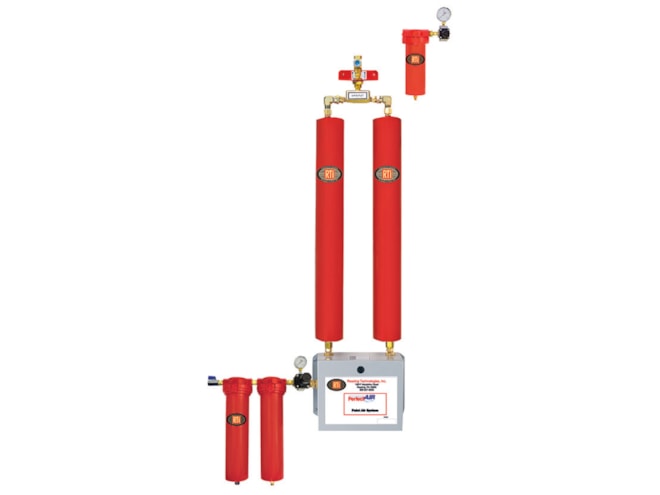

Reading Technologies PERF-50 Perfect Air System Desiccant Dryer

Self-regenerating desiccant dryer with dry air purge rated up to 50 SCFM for 2 HVLP or conventional paint guns.

Features

  • PERF-50-PF pre-filter:
    • 90 SCFM at 100 PSI
    • 1/2" ball valve inlet
    • 1st stage auto drain
    • 3/4" high flow regulator with gauge
    • 1 micron (1st stage) and 0.01 micron (2nd stage) capacity
  • ARAD-50 desiccant dryer
    • Up to 50 SCFM at 100 PSI
    • -40°F dew point
    • 3/8" inlet/outlet
    • Moisture indicator at outlet
    • 54 SCFM max inlet flow
    • 110 VAC (5ft power cord included)
    • NEMA 4 enclosure
  • PERF-50-AF after filter:
    • 60 SCFM at 100 PSI
    • 1/2" inlet/outlet
    • 0.01 micron capacity
    • Manual petcock drain
    • 1/2" high flow regulator with gauge
    • Aluminum towers

The Reading Technologies PERF-50 Perfect Air System desiccant dryer delivers clean, dry air to your system consistently by combining the PERF-50-PF 2-stage pre-filter, the ARAD-50 regenerative desiccant dryer, and the PERF-50-AF after filter to create a system that can deliver a flow rate of up to 50 CFM to your HVLP or conventional spray guns. The system design allows for easy maintenance, with a replaceable desiccant cartridge that ensures optimal performance.
