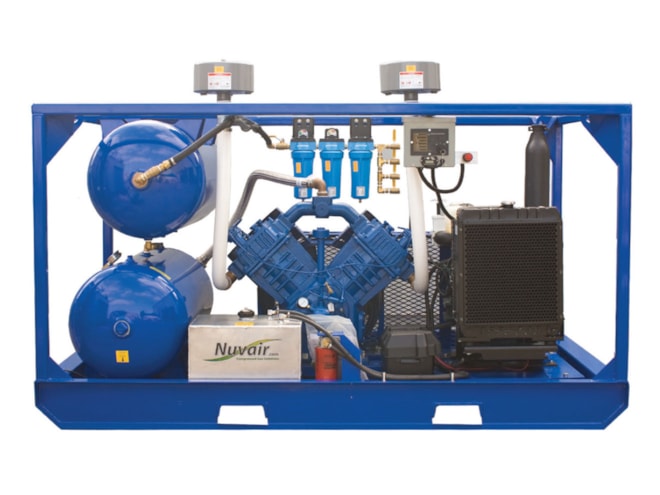

Nuvair Q-5120 Diesel Driven Two Stage Piston Air Compressor

Framed-in system with a 5120 compressor block and 35 HP Kubota diesel engine.

Features

  • Quincy 5120 air compressor with head unloaders
  • Air cooled Kubota D1803-M diesel engine
  • Hankison filtration to 0.003 PPM oil vapor
  • Hayes PTO bearing block
  • Electric start
  • 2 60 gallon ASME volume tanks
  • 15 gallon fuel tank
  • 200 PSI max operating pressure

The Nuvair Q-5120 diesel drive two stage piston air compressor provides 95 CFM of Grade D air for use in the production of low pressure industrial or breathing air. The standard package is built around the Quincy 5120 air compressor and includes a Kubota D1803-M engine, electric starter, Hankison filtration, and a Hayes PTO bearing block. The entire unit is framed in a heavy duty powder coated offshore frame with vibration isolated inner frame. Standard build includes a full instrument panel, fork lift slots, four point lifting eyes, belt guard, drip pan, and Grade D breathing air filtration.
