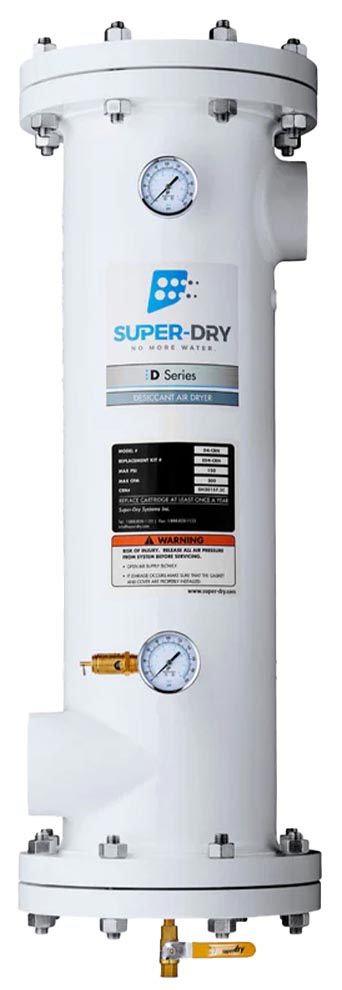

Super-Dry D-Series Desiccant Air Dryer
Single tower air dryer designed for point-of-use and intermittent flow applications up to 300 SCFM, Dew point starting at -40° F.
Highlights...
- By Super-Dry
- Factory Warranty and Support Available
- Excluded From Free Shipping
- Local Service Available on All Brands
Overview
Features
- 70, 150, 200, and 300 SCFM models available
- 300 SCFM available in a CRN configuration
- 150 PSI max inlet pressure
- 100°F (38°C) max inlet temperature
- Pre-filled with desiccant cartridge
- Included pressure gauge, safety valve, and ball valve
- Optional humidity gauge and replacement cartridge available
Description
The Super-Dry D-Series desiccant air dryer is a single tower unit designed for point-of-use and intermittent flow applications. The wet compressed air enters at the inlet is separated due to the off-set inlet creating centrifugal separation to trap water droplets, then passes around a polypropylene coalescer element, felt pads, and stainless-steel grids to remove solid particulates. The air flows upward through a sewed filtration desiccant bag that acts as a sponge to absorb moisture. The air then flows through the second stage of filtration to eliminate any desiccant dust.
