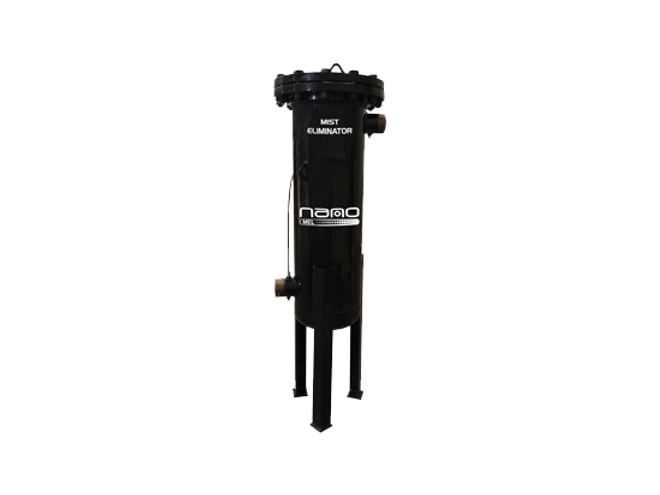

nano-purification solutions MEL Mist Eliminator
99.97% efficient microfiber coalescing media with particle removal down to 0.3 micron including coalesced liquid water and oil.
Overview
Features
- 250 to 3,000 SCFM capacity
- Connections:
- 2 to 3" NPT (250 to 1,000 SCFM)
- 3 to 4" Flange (1,250 to 3,000 SCFM)
- 35 to 248°F design operating temperature range
- 20 to 150 PSIG operating temperature range
- Less than 0.5 PSIG initial differential pressure
- 1.0 PSID recommended pressure differential for element change
- ISO Class 2.7.3 air quality class (solids, water, oil)
Description
The nano-purification solutions MEL Mist Eliminator achieves the same efficiency filtration as conventional downstream filters with a service life of 10+ years. It is typically located after an oil lubricated compressor to provide optimum protection in the result of a catastrophic failure of the compressor's air/oil separator. The robust pressure vessel is built in accordance with the latest edition of VIII Div 1 ASME Code. The unit has an external powder epoxy coat as standard, and a zero air loss drain is shipped loose. It can be serviced without inlet & outlet disruption. Drain vent ports and a safety valve port are included as standard.
Applications
- Industrial
- Automotive
- Food & beverage
