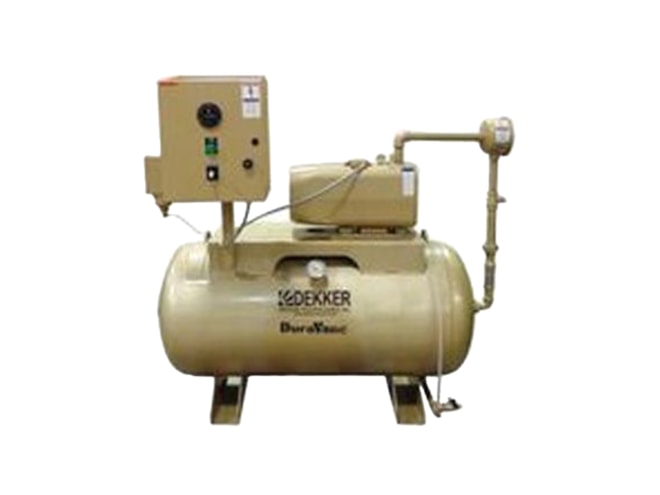

Dekker DuraVane Oil Free Rotary Vane Vacuum System
Compact vacuum pump system with direct drive motor, air cooling, and 10,000 hour vane life.
Overview
Features
- 1.5 to 5.5 HP
- 12 to 71 ACFM capacity
- 75 to 112.5 Torr max vacuum
- Horizontal vacuum receiver tank
- TEFC motor
- 230-460/3/60 V
Description
The Dekker DuraVane oil free rotary vane vacuum system is designed with fewer vanes and longer vane life with self-lubricating, long-life graphite composite vane material. The DuraVane features a three phase TEFC electric motor, inlet isolation valve, inlet flex connector, secondary non-return inlet check valve, inlet filter, receiver level sight gauge, vacuum gauge, and drain valve. The system is tank mounted on a horizontal vacuum receiver tank from 30 to 120 gallons, depending on the model selected.
The control panel monitors, measures, and displays performance. Its features include an across-line magnetic vacuum pump starter with three phase overload protection, a PLC with integral hour meter, vacuum on/off capability with adjustable set points, and a vacuum transducer for vacuum level indication and control.
Applications
- Printing
- Woodworking
- Paper converting
- Vacuum chucking and lifting
