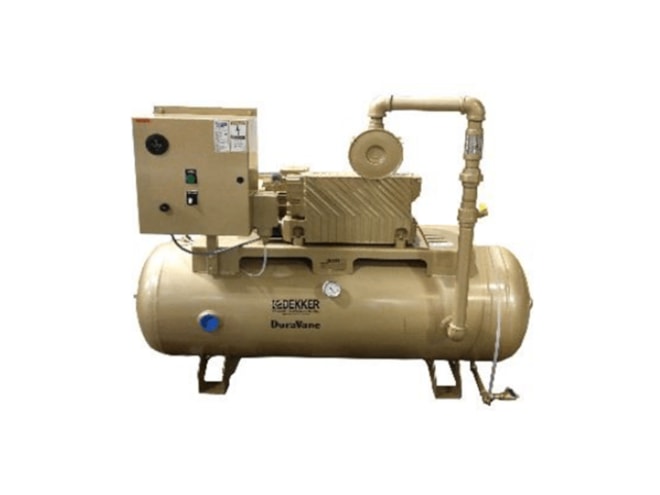

Dekker DuraVane Lubricated Rotary Vane Vacuum System
Air cooled vacuum pump system with direct drive motor, gas ballast, and mist eliminator.
Overview
Features
- Horsepower and Capacity:
- Simplex: 0.88 to 8.6 HP, 7.7 to 200 ACFM
- Duplex: 1.76 to 17.2 HP, 15.4 to 400 ACFM
- 0.08 to 1.1 Torr max vacuum
- Inlet isolation valve
- Inlet flex connector
- Horizontal vacuum receiver tank
- 60, 80, 120, and 200 gallon
- TEFC motor
- 230/460/3/60 voltage
Description
The Dekker DuraVane lubricated rotary vane vacuum system includes a lubricated rotary vane vacuum pump, gas ballast, mist eliminator, and control panel. The DuraVane features a three-phase TEFC electric motor, inlet isolation valve, inlet flex connector, inlet filter, receiver level sight gauge, vacuum gauge, and drain valve. The system is mounted on a horizontal vacuum receiver tank from 60 to 200 gallons, depending on the model selected.
The control panel monitors, measures, and displays performance. The control panel features include an across-line magnetic vacuum pump starter with three-phase overload protection, a PLC with an integral hour meter, vacuum on/off capability with adjustable set points, and a vacuum transducer for vacuum level indication and control.
Applications
- Vacuum packing, lifting, and chucking
- Paper converting
- Biotech industry
- Printing industry
- Electronics industry
- Laboratories
- Hospitals
