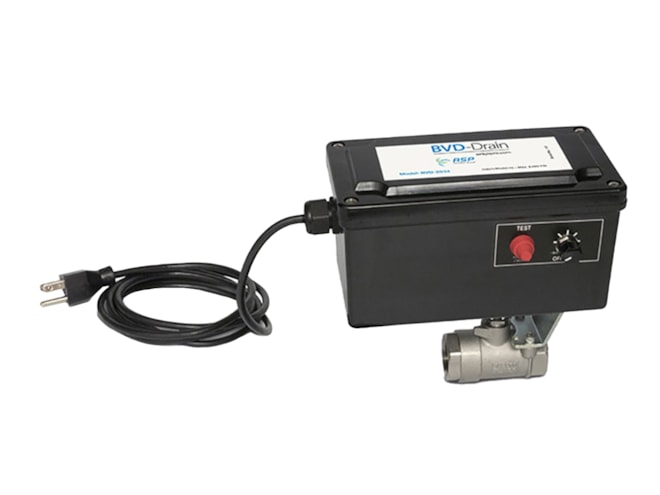

Air System Products BVD Ball Valve Drain

Bronze or stainless steel non-clogging condensate drain with a 1/4 to 1in NPT connection and electronic solid state timer.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at 1-866-778-6572. We’re open Mon - Fri / 8:00 AM - 5:00 PM EST.
Request pricing below.
${{ calcCost | formatCurrency }} ${{ (calcCost * calcQuantity) | formatCurrency }} per {{ calcQuantity }} (${{ (calcCost * boxQuantity) | formatCurrency }} per {{ boxQuantity }}) ${{ calcCost | formatCurrency }}
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Available Payment Methods
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
View Company Reviews
Highlights...

Features

  • Straight through flow pattern
  • Robust seat and seal design
  • Test button
  • 115/1/60 V
  • NEMA 4X enclosure

The Air System Products BVD ball valve drain is non-clogging, timer-based, and uses a full-port ball valve. A heavy duty gear motor housed in a NEMA 4X enclosure ensures a long service life. A solid state timer module initiates a drain cycle by energizing the gear motor to rotate the ball valve 180° from closed to open and back to a closed position. The drain cycle lasts for approximately 8 seconds during which condensate is drained.
