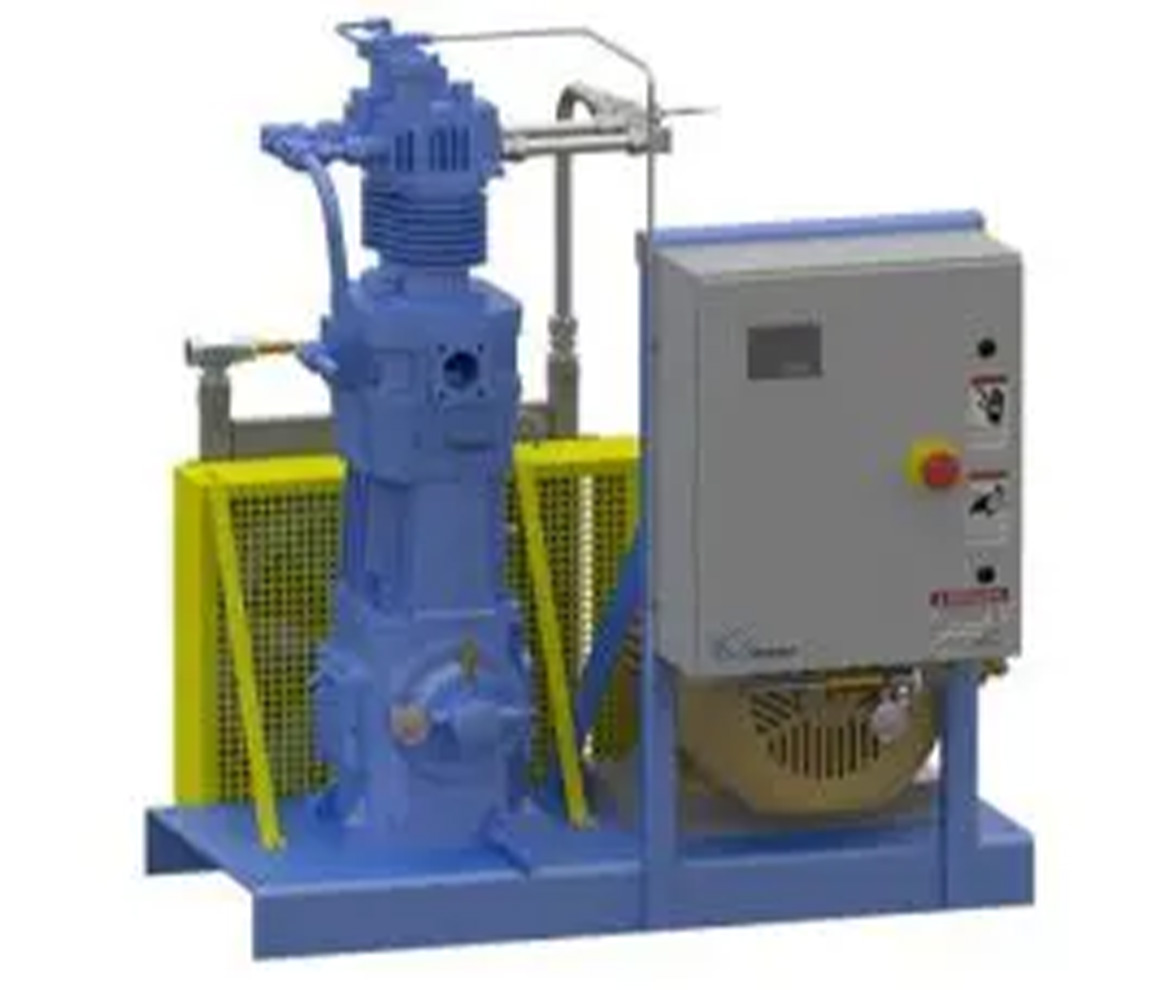

Quincy Compressor QDS Odyssey Oil-Free Air and Nitrogen Booster

Single or two stage booster, up to 600 PSIG, up to 500 SCFM, air or nitrogen.

Features

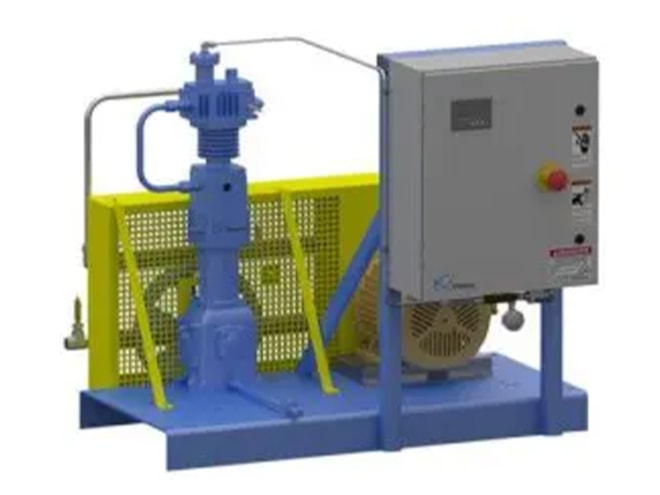

  • Single stage:
    • Used for boosting 1.3 to 4 times existing pressure
    • 5 to 75 HP
    • 11 to 504 SCFM
    • Up to 400 PSIG
    • Air-cooled as standard (Water-cooled available upon request)
  • Two-stage:
    • Used for boosting 3 to 10 times existing pressure
    • 5 to 60 HP
    • 8 to 245 SCFM
    • Up to 600 PSIG
    • Air-cooled as standard (Water-cooled available upon request)

The QDS Odyssey oil-free high-pressure reciprocating boosters are designed to meet the demands of the most rigorous applications and prevent contamination/losses of the gas stream by completely separating the lubricated bottom end from the 100% oil-free compression end. Boasting standard capabilities of up to 600 PSIG and 500 SCFM for both Air and Nitrogen, these boosters are engineered to deliver consistent and reliable performance.

Applications:

  • Electronics - Fiber Optics, N2 Blanketing, Plastics Extruding
  • Chemical - Breathing Air, Hydrogenator, Liquid Transfer
  • Energy, Oil & Gas - Purge Air, Instrument Air, Liquid Transfer
  • Environmental - Purge Air
  • Fire Protection - Suppression Accumulator Bottles, Filling Extinguishers
  • Food Production - Fermentation Air
  • Heating, Cooling, Refrigeration - Pressure Testing Coils
  • Institutional - Lab Instrument Air
  • Medical Device Mfr - Bead Blasting, Contact Lense Process, Syringe Process, Pressure Testing
  • Mining, Minerals - Filter Press
  • Municipal WWT - Instrument Air
  • Plastics/Rubber - Autoclave (inerting), High-Pressure Forming, Vinyl Mfg
  • Semiconductor - High-Pressure Tools, Specialty Processes (silicon wafer, diode mfg)
