Atlas Copco LPD Series Hydraulic Post Driver
Drives post up to 5.91" diameter, trigger or remote valve options.
Overview
Features
- Light Duty:
- 5.28 gpm oil flow
- 2300 bpm impact range
- 0.4" to 2.36" post diameters
- Open center hydraulic system
- Trigger liver activation only
- Medium Duty:
- 5.28 to 7.93 gpm oil flow
- 1680 bpm impact range
- 1.57" to 3.94" post diameters
- Open center or closed center hydraulic system
- Trigger lever or remote valve activation options
- Heavy Duty:
- 7.4 to 10.57 gpm oil flow
- 1320 bpm impact range
- 2.76" to 5.91" post diameters
- Open center or closed center hydraulic system
- Trigger lever or remote valve activation options
Description
The Atlas Copco LPD Series Hydraulic Post Driver is available in light, medium, or heavy-duty models. The medium and heavy-duty models are available with either a trigger lever or a remote valve.
The LPD-LD has a built-in anvil and a front end that allows for a quick mount of adaptors and bushings for small-diameter rods. Special composite guiding bushings protect the zinc or copper surface from the driving rod. The sliding surface of the composite material permits smooth, low-friction operation.

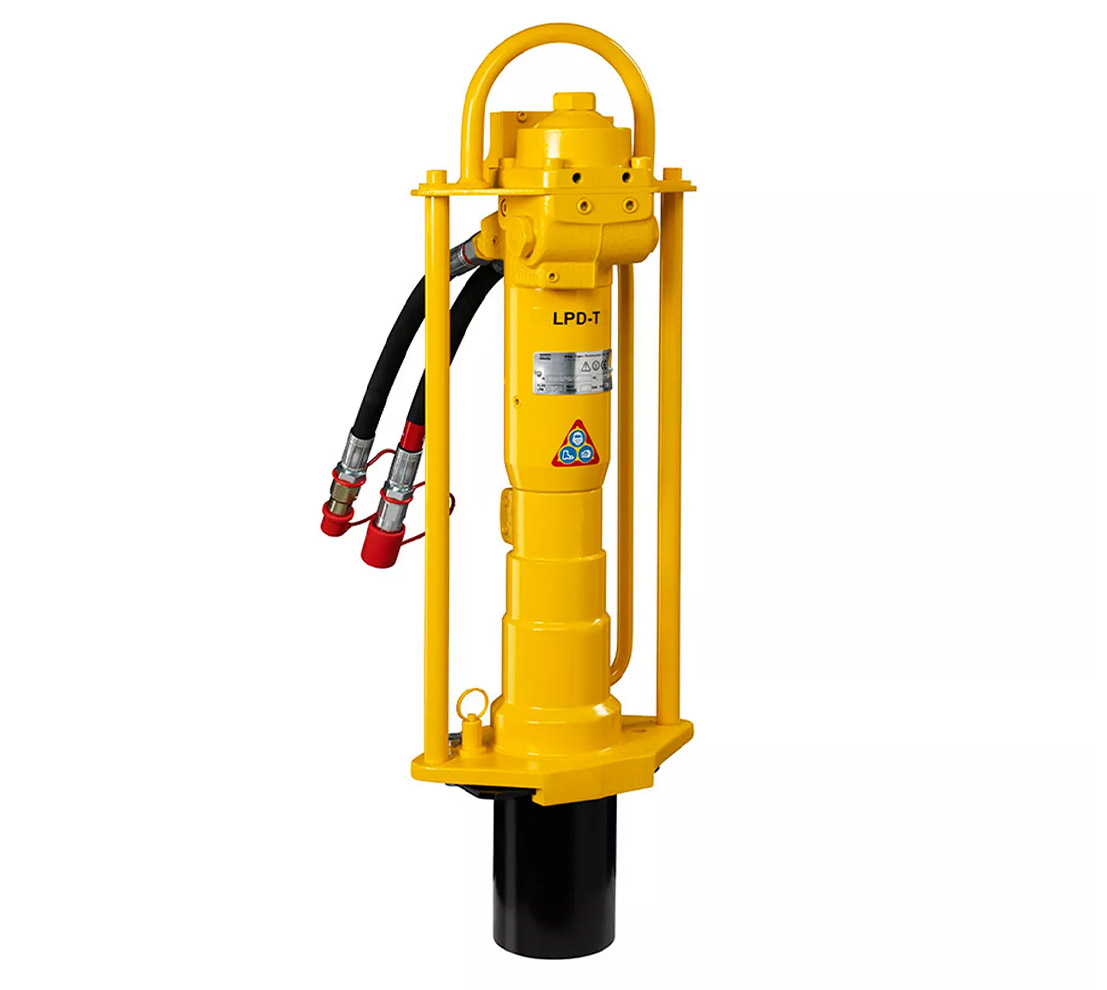

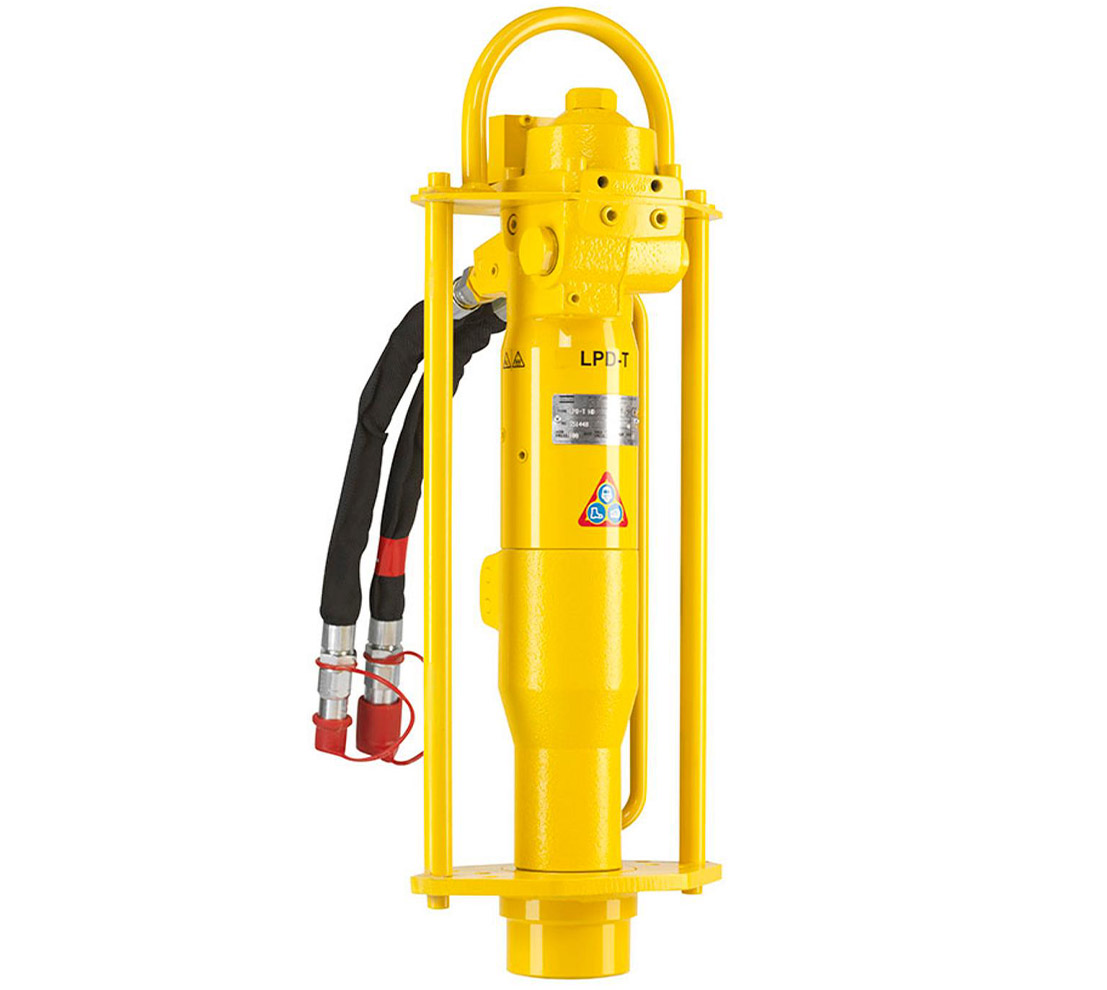

The LPD-T post driver includes a standard 0.5m quick-release coupling tail hose. It has a built-in start/stop trigger that you can activate directly on the driver. T-version is great for driving in road barrier tubes, profiles, signposts, and a wide range of anchors and poles.

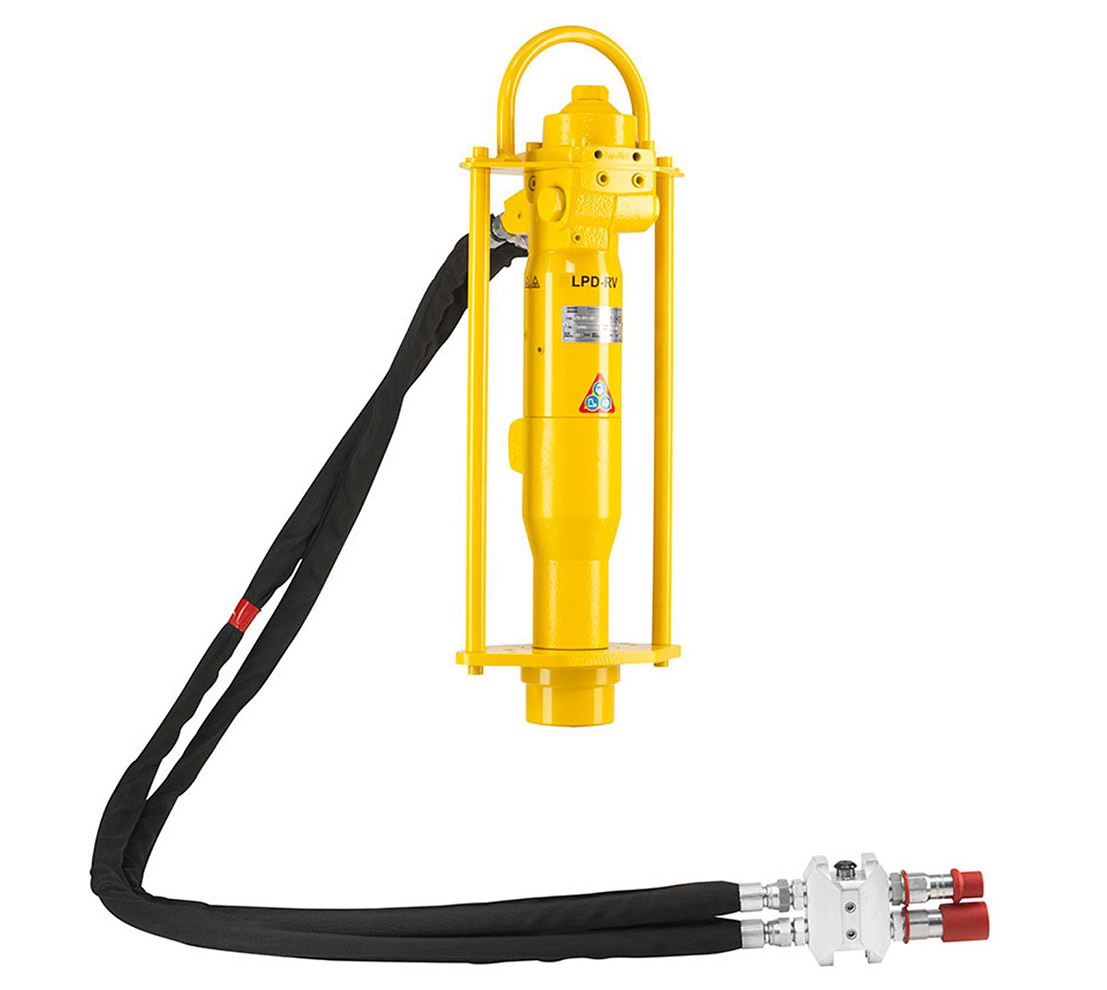

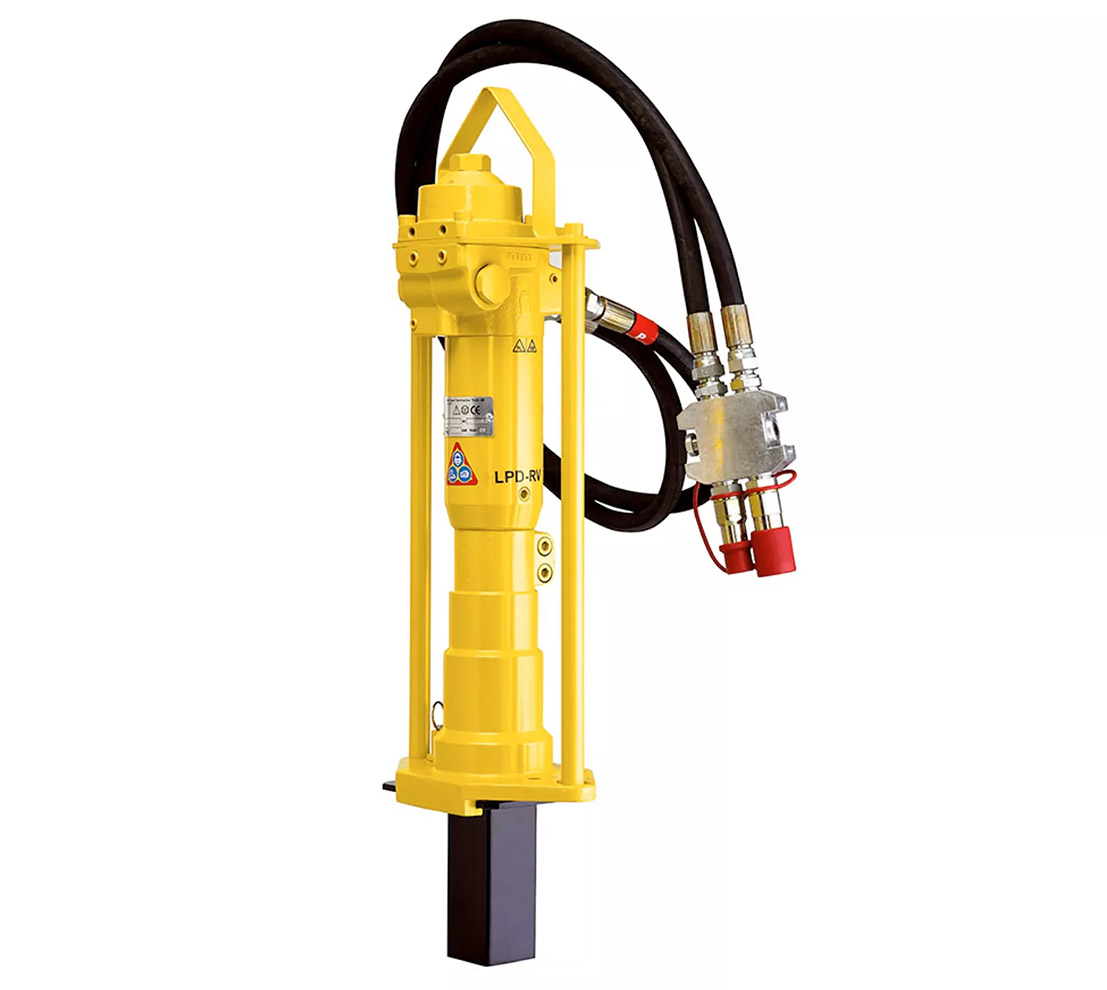

The LPD-RV post driver features a two-meter-long tail hose. It has a remote on/off valve, which allows you to activate the driver when it is placed on top of tall posts.
